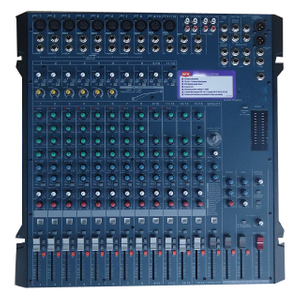

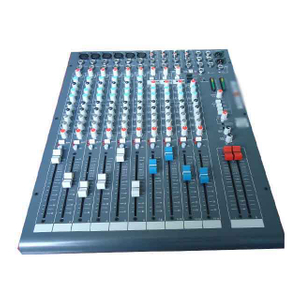

ZED-22FX
Sanway
Wire/Remote Control
Non
<95dB
16 Channels Mixer
| ZED-22FX Specification | |
| Operating Levels | |
| Input | |
| Mono channel(XLR) Input | +6 to -63dBu for nominal(+17dBu in max) |
| Mono channel Line Input(Jack socket) | +10 to -26dBu(+30dBu maximum) |
| Insert point(TRS Jack socket) | 0dBu nominal+21dBu maximum |
| Stere Input(Jack socket) | 0dBu nominal(control=Off to+10dB |
| Stere Input(photo socket) | 0dBu nominal(control=Off to+10dB |
| Output | |
| L, R& Mono Outputs(L& R XLR, Mono Jack) | 0dBu nominal. +21dBbu maximum. |
| Aux Outputs(Jack sockets) | 0dBu nominal. +21dBbu maximum. |
| Alt Outputs(phono sockets) | 0dBu nominal. +21dBbu maximum. |
| Rec Outputs(phono sockets) | 0dBu nominal. +21dBbu maximum. |
| Frequency Response | |
| Mic in to Mix L/R out, 30 dB gain | +0.5/-1dB 20Hz to 20kHz |
| Line in to Mix L/R OUT 0dB gain | +0.5/-1dB 10Hz to 30kHz |
| Stereo in to Mix L/R out | +0.5/-1dB10Hz to 30kHz |
| THD+n | |
| Mic in to Mix L/R Out, 0dB gain 1kHz+10dBu out | 0, 004% |
| Mic in to Mix L/R Out, 30dB gain 1kHz | 0, 014% |
| Line in to Mix L/R out 0dBu gain 0dBu 1kHz | 0, 005% |
| Stereo in to Mix L/R out 0dBu gain +10dBu 1kHz | 0, 003% |
| Headroom | |
| Analogue Headroom from nominal(0Vu) | 21dB |
| USB in& out headroom from nominal(0Vu) | 14dB |
| USB Audio CODEC(Coder/Decoder) | |
| USB Audio In/Out | USB1.1 compliant 16bit |
| Sample Rate | 32, 44.1, or 48 kHz |
| Noise | |
| Mjc Pre EIN@max gain 150R input Z 22-22kHz | -127dBu |
| Mix L/R out, L/R faders=0, 22-22kHz ZED-14 | -88dBu |
| Mix L/R out, L/R faders=0, 22-22kHz ZED-14 | -86dBu |
| Mix L/R out, L/R faders=0, 22-22kHz ZED-14 | -84dBu |
