DA5004S
NON

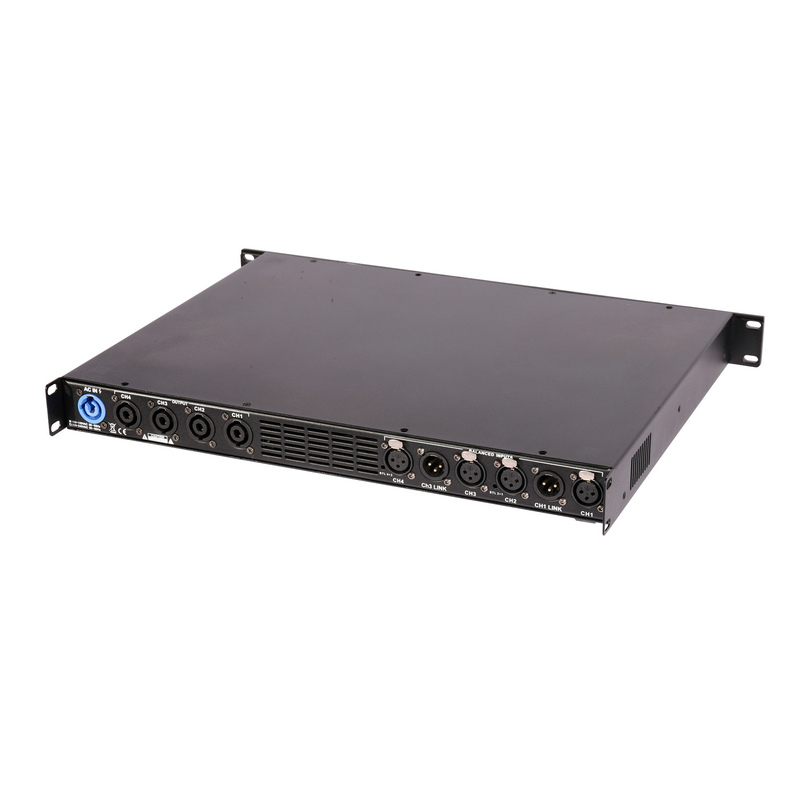

Overview:
DA5004S 4 channel compact class d amplifier is perfect for loading top speakers with power rates 500W 8 ohms, 900W 4 ohms per channel.
DA5004S class d professional amplifier carries four flexible output channels in a high power density 1 rack unit form factor, saving rack space and system cost. Built-in new technology protection prevents overloading of the amplifier and sending potentially damaging signals to the speakers.
Features:
4x500W at 8 ohms
4x900W at 4 ohms
Lightweight and compact
Fans cooling and output protection
Specification:
ITEM | DA5004S 4 Channel Compact Class D Professional Amplifier |
8Ω Stereo Power | 4×500W |
4Ω Stereo Power | 4×900W |
8Ω Bridged Power | 2×1600W |
Frequency Response | 20Hz-20KHz ±1dB |
THD+N 1KHz 1W 8Ω | <0.1% |
Signal to Noise Ratio 1KHz | >110dB |
Class | D |
Protection | Short,DCP,OVP,UVP,OCP,OTP |
Operating Voltage | 90V-135V / 180V-265V |
Input Sensitivity | 1V |
Input Impedance | 20KΩ |
Dimensions(W×H×D) | 48×44×325mm |
Packing Dimension | 550×100×450mm |
Net Weight(kg) | 5.8 |
Gross Weight(kg) | 7.4 |
