DA24K2
NON

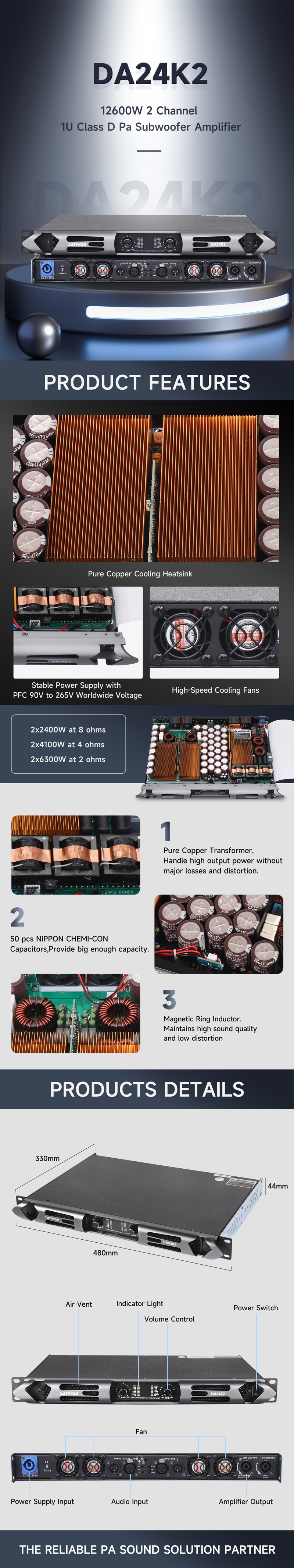

Overview:
DA24K2 2 channel class d power amplifier is perfect for loading subwoofers with high power rates 2400W 8 ohms, 4100W 4 ohms, 6300W 2 ohms per channel. It is using latest circuit technology enables the highest audio quality with excellent dynamics and enormous power. The amplifier focus on what high-performance amps have to be able to do, even in 2 ohms operation.
D24K2 class d pa amplifier carrying two flexible output channels in a high power density 1 rack unit form factor saves rack space and system cost. Built-in new technology protection prevents overloading the amplifier and sending potentially damaging signals to the speakers.

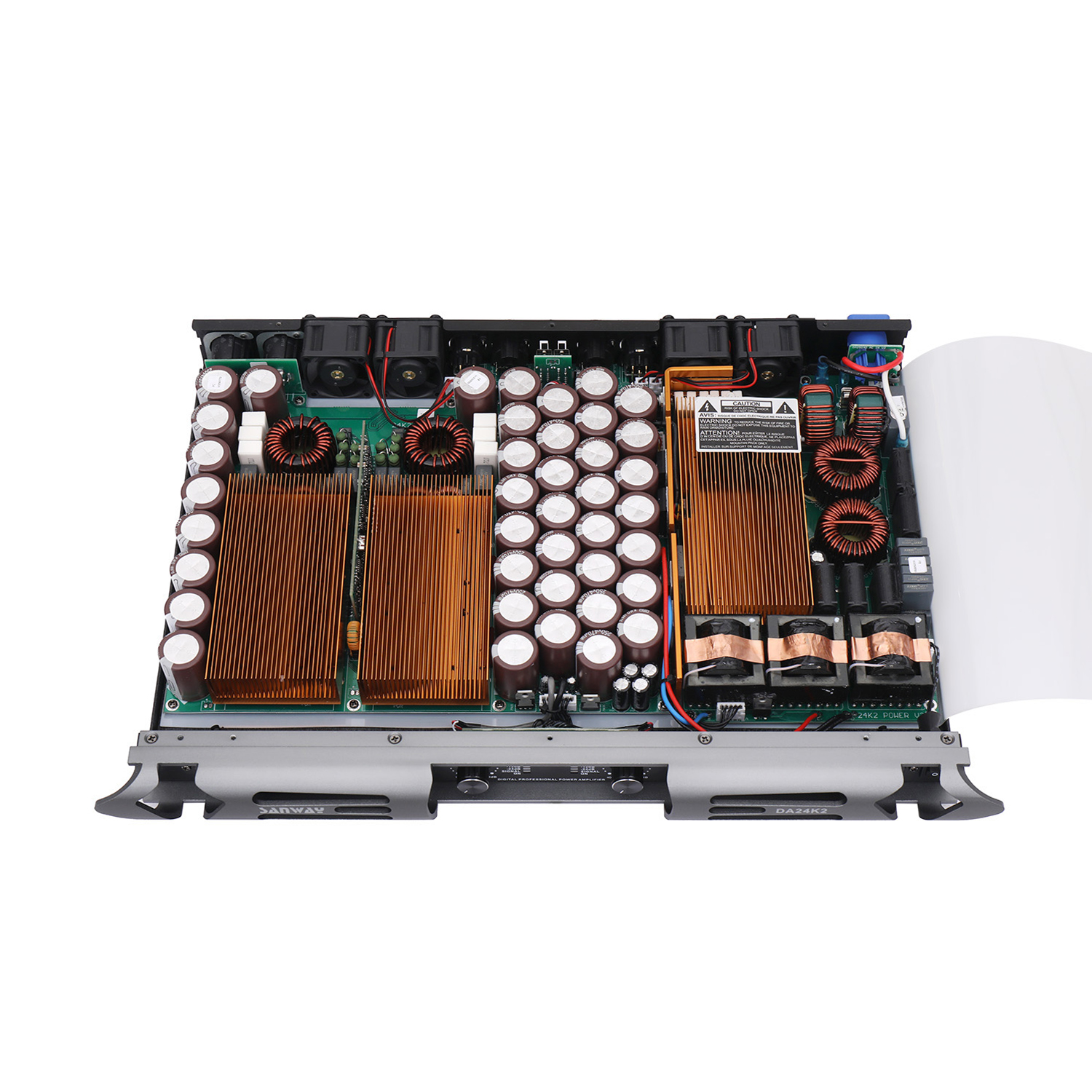

D24K2 class d subwoofer amplifier installed 4 high efficient Nidec fans, an advanced, thermal dependant fan assisted convection cooled system The fan system is dependent upon the internal ambient temperature of the unit and runs as high or low levels depending on the amplifier’s cooling demands.
Features:
Powerful and high-efficient class d amplification
Lightweight and compact 1U rack space design
Function indicators and short circuit protection
2 ohms long term load stable
Specification:
ITEM | DA24K2 |
8Ω Stereo Power(RMS) | 2400W ×2 |
4Ω Stereo Power(RMS) | 4100W ×2 |
2Ω Stereo Power(RMS) | 6300W ×2 |
8Ω Bridged Power(RMS) | 8200W |
4Ω Bridged Power(RMS) | 12600W |
Frequency response 8Ω ，20Hz--20kHz ，1/8 rated power | ±0.5dB |
1KHz THD： | 0.01-0.03% |
Signal-to-Noise Ratio 8Ω, 1kHz ,1v Sensitivity | >=104dB |
Input sensitivity (rated power 8Ω) | 0.775V/1V/32dB selectable |
Cross- talk( 20Hz- 1kHz, below Rated Power ) | >=70 dB |
Input Connectors (per channel) | 3-pin XLR, electronically balanced |
Output Connectors (per channel) | Neutrik speakON |
Class | D |
TourClass Protection | Under voltage, DC, Over temperature, Over load limiter, short protection |
Operating voltage | 90V-260V |
Input impedance | 20kΩ（Balance），10kΩ（Unbalance） |
Damp Factor | >=5000 |
Dimensions(WXHXD) mm | 480x330x44mm |
Packing dimension (mm) | 515x415x103mm |
Net weight(kg) | 8.7kg |
Gross weight(kg) | 10.5kg |
