DA series is the multi channel class d amplifier, in the product range you could see 8 channel, 6 channel, 4 channel d class amplifier.
Key Features of class d audio power amplifier
1. Amazing good sound quality and powerful bass
2. High performance price ratio and reliability
3. Rubberized feet for extra stability.
4. Fashionable panel with volume, treble and bass controls for easy adjustment
Application
1. Theatre Sound Reinforcement
2. Live Sound Reinforcement
3. Corporate Events
4. Fixed Installations
5. Delay systems for large scale outdoor sound reinforcement
Specification

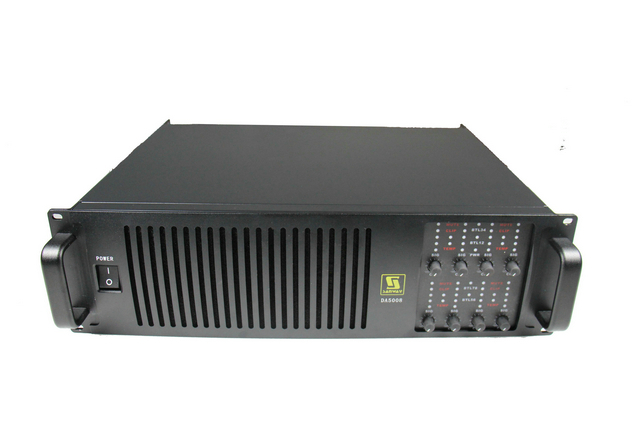

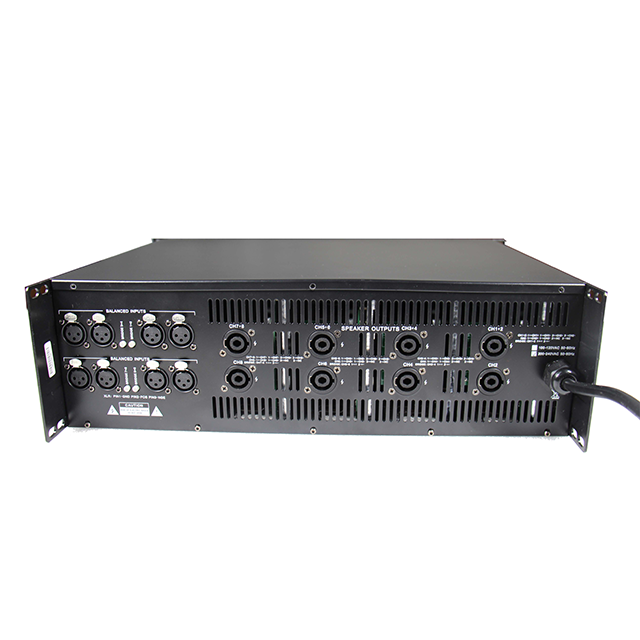

ITEM | DA5008 | |
8Ω Stereo Power | 8X500W | |
4Ω Stereo Power | 8X900W | |
8Ω Bridged Power | 4X1600W | |
Frequency Response | 20Hz-20KHz ±1dB | |
THD+N 1KHz 1W 8Ω | <0.1% | |
Signal to Noise Ratio 1KHz | >109dB | |
Channel Separation 1KHz | >70dB | |
Class | D | |
Protection | Short,DCP,OVP,UVP,OCP,OTP | |
Operating Voltage | 90V-135V / 180V-265V | |
Input Sensitivity | 0.77V | |
Input Impedance | 20KΩ | |
Dimensions(W×H×D) | 483X132X396 | |
Packing Dimension | 580X225X560 | |
Net Weight(kg) | 14.7 | |
Gross Weight(kg) | 19 |
