Power amplifiers are the heart of many electronic systems, converting small signal inputs into powerful outputs that drive loads such as speakers, transmitters, and industrial equipment. In today’s digital age, the digital power amplifier stands out for its efficiency, versatility, and integration in modern systems. But before diving into the digital domain, it's essential to understand the fundamental types of power amplifiers used across industries.
This article will explore the three main types of power amplifiers—Class A, Class B/AB, and Class D, with a focus on how they relate to digital power amplifiers. We'll examine their operating principles, efficiency levels, and application domains. By the end, you'll have a clearer understanding of how each type fits into the broader ecosystem of modern power electronics.
At their core, power amplifiers are designed to increase the power of an input signal. Whether you're watching a movie with surround sound, controlling a robotic arm, or operating a broadcast station, power amplifiers are responsible for driving the final output stage of these systems. A digital power amplifier is a more recent innovation in this space. Unlike traditional analog designs, digital power amplifiers work by converting incoming analog signals into digital pulses—typically via pulse-width modulation (PWM) or delta-sigma modulation—and then amplifying them using high-efficiency switching technologies.
These digital devices often fall under Class D amplifiers, though not all Class D amplifiers are digital. The distinction lies in signal processing. With digitization, comes more precision, less heat generation, and greater system integration capabilities. Nonetheless, the foundation of understanding starts with the analog classes: Class A, Class B (and its hybrid AB), and Class D.
Class A power amplifiers are the most linear and straightforward amplifier design. In this type, the output device conducts for the entire 360° of the input signal cycle. That means the active device (typically a transistor or MOSFET) is always on, regardless of the signal strength. This continuous conduction ensures that the signal remains as true to the original as possible, with minimal distortion.
However, Class A amplifiers suffer from very poor efficiency, usually around 20% to 30%. Most of the power consumed is converted to heat rather than useful output, which makes these amplifiers impractical for high-power applications. They're bulky, often require significant heat dissipation mechanisms, and are not environmentally friendly in the context of energy conservation.
That said, in audiophile-grade systems or sensitive analog instrumentation, Class A designs remain popular due to their unmatched fidelity. Even as the world leans toward digital power amplifiers for broader efficiency, certain niche markets continue to appreciate the raw linearity of Class A.
Key characteristics of Class A:
Continuous current flow leads to high heat generation
Simple architecture, but poor energy efficiency
Excellent linearity and low distortion
Rarely used in high-power digital systems
Class B amplifiers improved upon the efficiency shortcomings of Class A by introducing the concept of split conduction. In a Class B amplifier, two devices conduct for opposite halves (180°) of the waveform—one handles the positive half, and the other the negative. This design significantly reduces power waste, leading to efficiencies around 60% to 70%.
However, this design introduces a new issue: crossover distortion. At the zero-crossing point of the waveform, neither transistor conducts perfectly, causing a slight gap or non-linearity in the output. This is where Class AB comes into play. By slightly biasing both devices to remain partially on at the zero-crossing point, Class AB minimizes this distortion while retaining much of the efficiency gain.
Class AB is one of the most widely used amplifier types today, particularly in audio systems, mobile communication devices, and automotive electronics. It's also used in hybrid digital systems where signal fidelity is essential before digital processing takes over. Many digital power amplifier systems use Class AB stages in pre-amp or driver circuits before final PWM amplification.
Key highlights:
Better efficiency than Class A
Acceptable linearity for most applications
Minor distortion in Class B, corrected in AB
Common in high-quality analog-to-digital hybrid systems

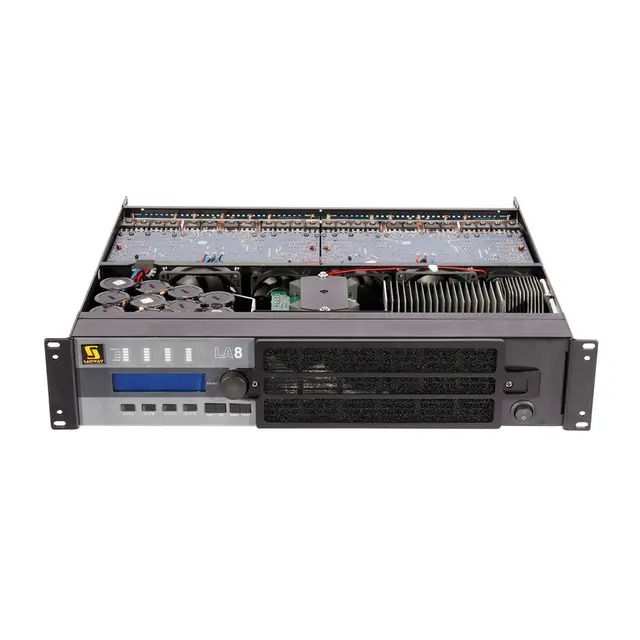

Now we arrive at Class D, the realm of the digital power amplifier. Unlike Classes A and B, Class D does not operate in a linear region. Instead, it functions as a switching amplifier. The input analog signal is converted into a high-frequency digital signal using modulation techniques like PWM (Pulse Width Modulation). This digital signal is then passed through switching transistors that rapidly toggle on and off, amplifying the signal by controlling voltage and current pulses.
A low-pass filter at the output smooths the pulses into a continuous waveform suitable for driving loads like loudspeakers or motors. Because the transistors are either fully on or off (and not in the resistive region), power loss is minimal, resulting in efficiencies above 90%.
Digital power amplifiers are ideal for modern applications where compactness, thermal efficiency, and integration with digital control systems are crucial. You’ll find them in Bluetooth speakers, digital audio systems, electric vehicles, and even renewable energy inverters.
Key characteristics of Class D:
Very high efficiency (90%+)
Uses digital modulation for signal processing
Requires precise filtering and timing
Central to the rise of digital power amplifiers
| Feature / Class | Class A | Class B/AB | Class D (Digital) |
|---|---|---|---|
| Conduction Angle | 360° | 180° (B), >180° (AB) | Switching (0°/100%) |
| Efficiency | 20%–30% | 50%–70% | 85%–95% |
| Distortion | Minimal | Moderate (B), Low (AB) | Depends on modulation |
| Heat Generation | Very High | Moderate | Low |
| Complexity | Low | Moderate | High (Digital Control) |
| Typical Application | Hi-Fi audio, lab gear | Consumer electronics, car audio | Digital audio, EVs, IoT systems |
A digital power amplifier is a type of amplifier that processes signals digitally before amplification. It uses switching techniques like pulse-width modulation to increase efficiency and reduce heat generation. These are commonly found in compact, battery-powered, and smart systems.
Not exactly. While many Class D amplifiers are digital, not all of them are. Some Class D designs still operate on analog signals but use switching topologies. A digital power amplifier explicitly refers to those with digital signal input and processing stages.
Digital amplifiers switch transistors fully on or off, minimizing time spent in resistive states where heat is generated. As a result, they waste less power and achieve higher conversion efficiencies.
They can suffer from electromagnetic interference (EMI) and require careful filtering to maintain audio or signal fidelity. Their design is also more complex, needing digital control systems and advanced timing mechanisms.
Each amplifier class has its own strengths and ideal use cases. If you're after pure signal reproduction and can tolerate inefficiency, Class A might still be viable. If you need a balance between quality and efficiency, Class B or AB may serve well. But if you're building or integrating smart, efficient, and compact systems, digital power amplifiers, typically based on Class D, are the future.
In today’s connected, power-conscious world, the digital power amplifier has emerged not just as an alternative—but as a superior solution for most modern applications. Whether you’re developing the next generation of wireless audio devices or designing power systems for electric vehicles, understanding these amplifier classes is crucial to optimizing performance, cost, and energy efficiency.
