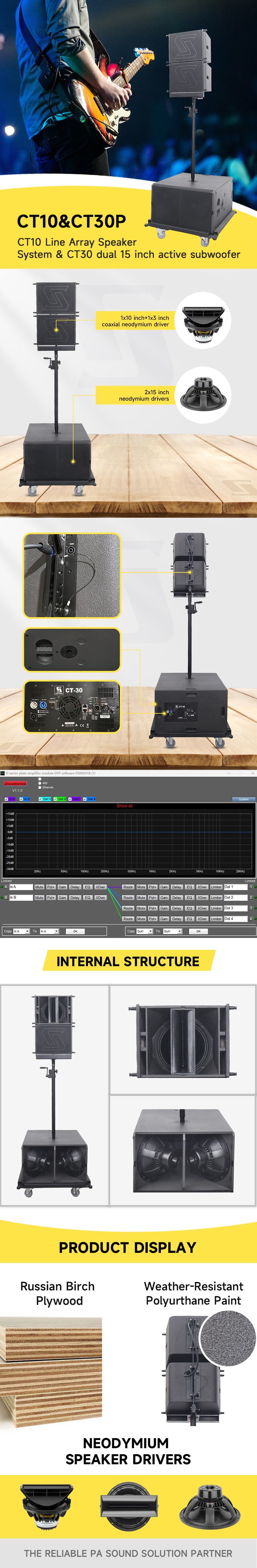

CT10&CT30P
Sanway
Single 10 inch Line Array
powered
Product Description:

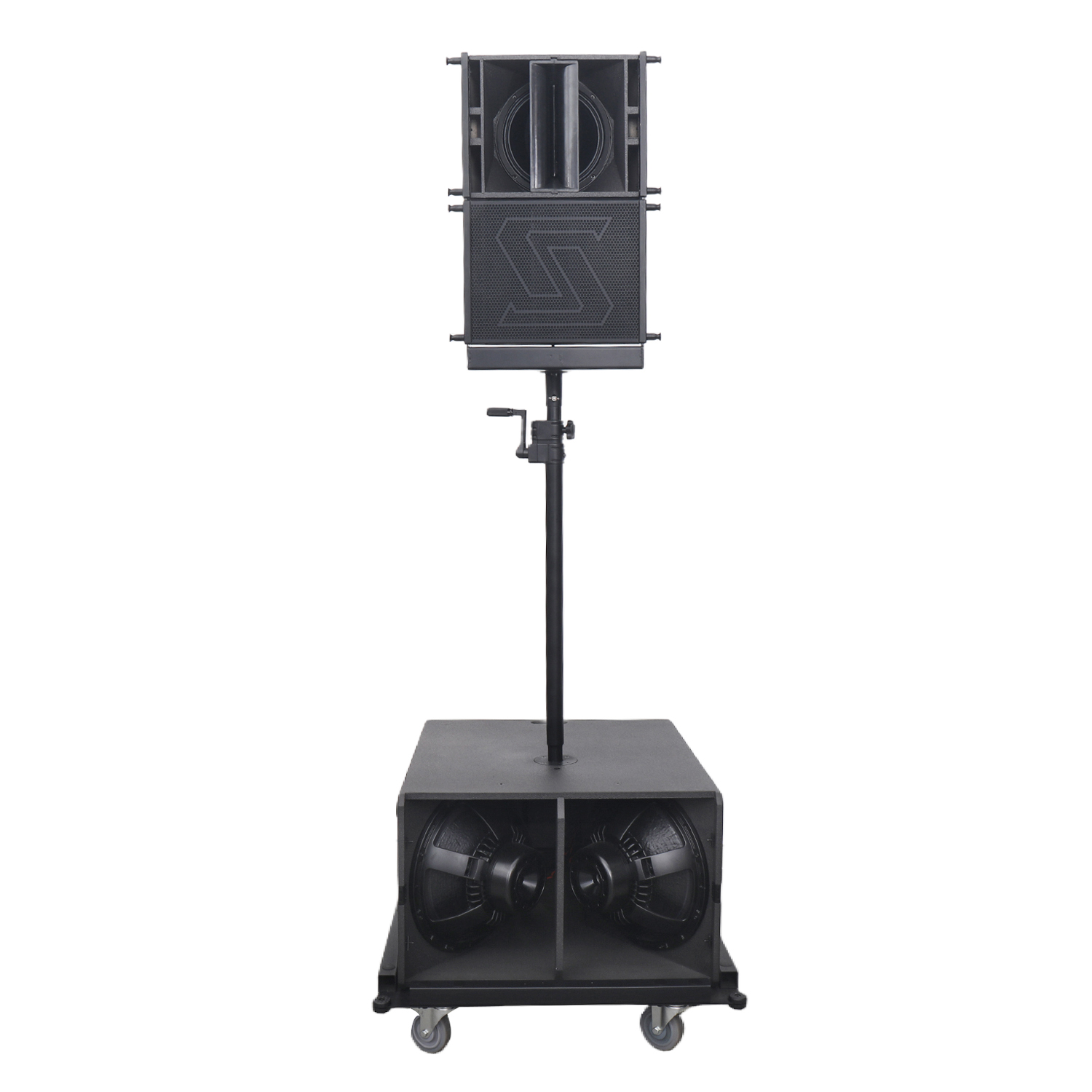

CT10 Line Array Speaker System – Compact Power Meets Professional Sound
The CT10 is a vertically designed powered line array speaker system engineered for high-performance audio at events that demand clear, powerful sound. Featuring a 10-inch woofer and a 3-inch voice-coil neodymium compression driver, this compact coaxial loudspeaker is mounted on a 100°Hx40°V nominal coverage conical horn, delivering a wide and balanced sound dispersion.
Whether flown, ground-stacked, or pole-mounted, the CT10 is the perfect solution for corporate events, nightclubs, theaters, and both indoor and outdoor live music performances.
CT30P Dual 15-Inch Active Subwoofer – Deep Bass for Big Spaces
The CT30P active subwoofer features a dual 15-inch horn-loaded design, optimized for long excursion and powerful low-frequency output. Ideal for outdoor shows or large indoor venues, the CT30P houses a 2-channel plate amplifier with DSP control, capable of powering two CT10 top speakers with ease.
Advanced DSP Control for Custom Sound Shaping
The integrated DSP offers full signal processing control, including: Mute, Polarity, Gain, Delay, Limiter, Mixer, EQ, Crossover (X-OVER)
Users can easily preset and adjust sound profiles to match various venue requirements and performance styles.

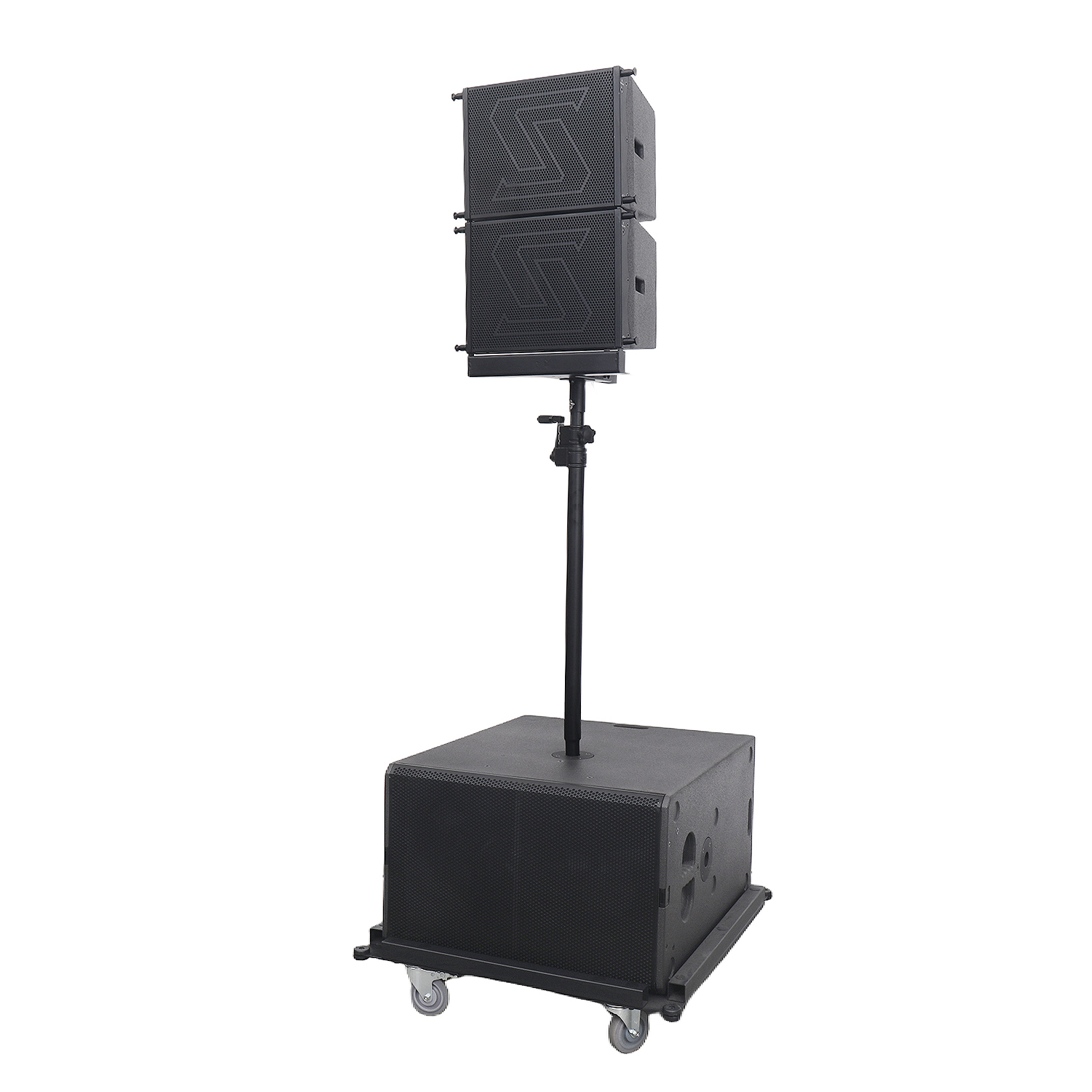

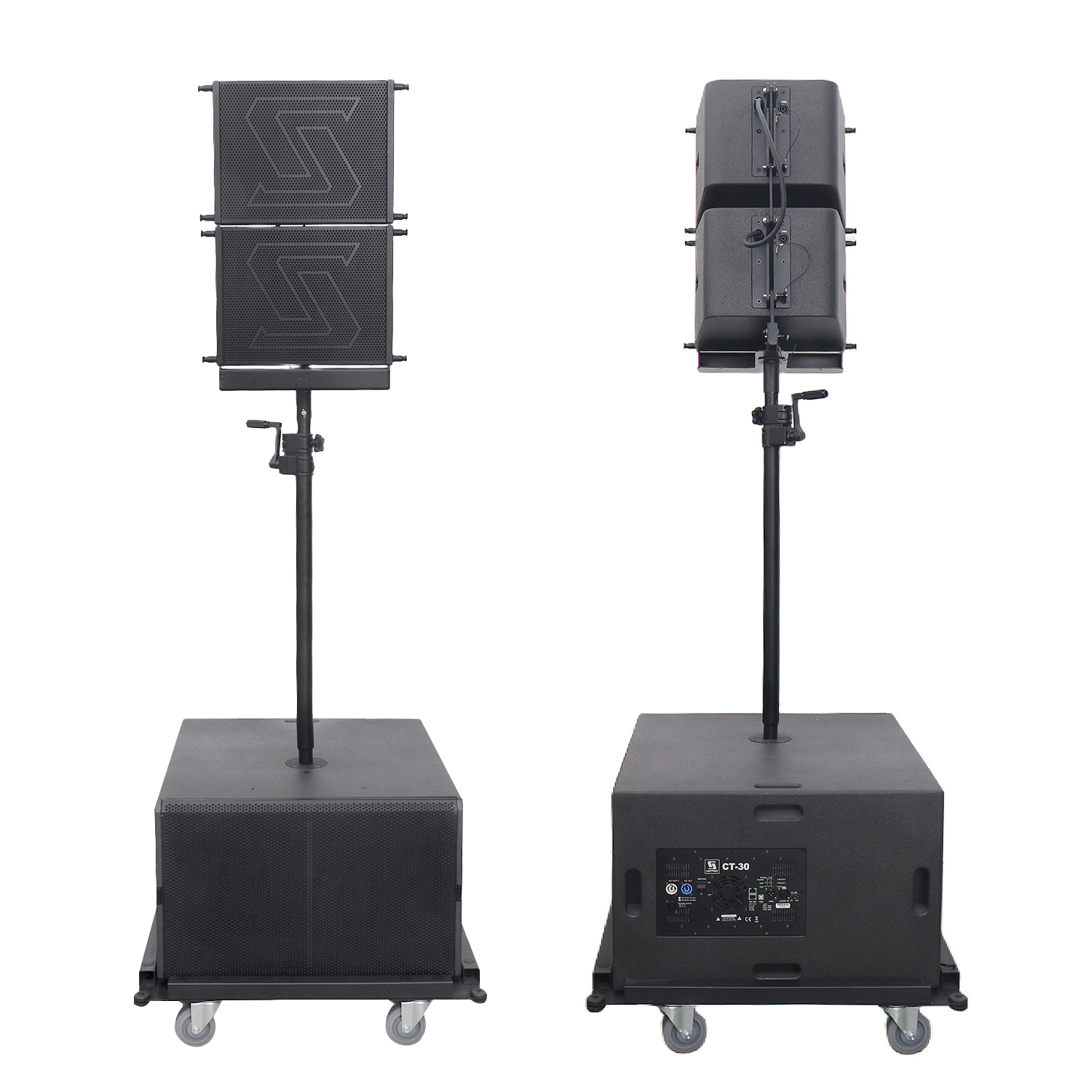

Complete Touring System – CT10 + CT30P
A combination of two CT10 units and one CT30P subwoofer forms a portable, easy-to-set-up system perfect for touring artists, rental companies, or event technicians. Experience:
Convenience in setup
Powerful, clean sound delivery
Reliable performance in all environments
Why Choose the CT10 + CT30 Line Array System?
Compact yet powerful design
Flexible mounting options
Intelligent DSP features
Ideal for professional and live sound applications
Upgrade your audio performance with a system designed for clarity, power, and reliability.
Specification
Model | CT10 Line Array Speaker System |
Drivers | 1 x 10" LF / 1 x 3" HF Coaxial Neodymium |
Frequency range | 50 Hz ~ 20 kHz (±3 dB ) |
Power Handling | RMS450W/ Peak 900W |
Impedance | 8 Ohms |
Coverage range (h x v) | 100°Hx40°V |
Sensitivity 1 W / 1 m | 99 dB (passive) |
SPL max / 1 m / peak | 136 dB |
Dimensions (h x w x d) | 310 x 370 x 385 mm |
Net Weight | 13 kg |
Finish | Russian Birch Plywood and Polyurea Paint |
Model | CT30 dual 15 inch active subwoofer |
Driver | 2x15" |
Frequency range | 35-400Hz |
Power Handling | RMS 2000W; PEAK 4000W |
Impedance | 4 ohms |
Sensitivity 1 W/1M | 96dB |
SPL max/1m/peak | 139dB |
DSP | EQ; Delay; X-over;Gain and APF |
Active plate amplifier | Sanway 2 channel DSP plate amplifier |
DSP function | MUTE, Polarity, Gain, Delay, Limiter, Mixer, EQ, X-OVER |
Dimensions | 706x446x800 mm |
Weight | 45kg |
Finish | Russian Birch Plywood and Polyurea Paint |
