LA208
Sanway
NON
powered
Overview:
LA series self powered line array speaker system is the innovative technology achievement of Sanway. They are designed for small to large scale sound reinforcement applications, with complete efficiency and broadband directivity control to low frequencies.
Mouthing with Sanway Audio DSP amplifier module enable users to control the system via PC connected with USB or RS-485 interface. The DSP amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. allows the user to set up and modify the signal processing path, including MUTE,Polarity,Gain,Delay,Limiter,Mixer,EQ,XOver.
Description:

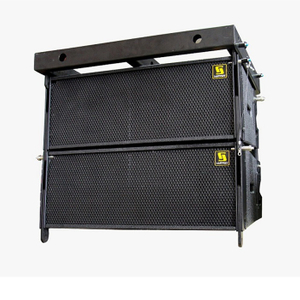

LA208 is a 2 way compact self-powered loudspeaker, which comprising 2x8” neodymium woofer and an impressive 3 inch voice coil compression driver with innovative horn design of waves phase philosophy.
It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely.
To make a complete active line array speaker system, we have LA18S to couple with LA208. This is a single 18 inch subwoofer with built-in amplifier. The inside 18 inch neodymium subwoofer with dual bass-reflex tuned enclosure, could deliver loud and efficient 138dB/m very high sensitivity.
Features:
1>. Dual 8 inch active line array
2>. Single 18 inch powered subwoofer
3>. Neodymium drivers
4>. Birch plywood enclosure with weather resistant finish
4>. DSP control and management
Specification:
LA208 dual 8 inch powered line array
Usable bandwidth (-10dB) | 55 Hz - 20 kHz |
Nominal directivity (-6dB) | Horizontal 110° symmetric |
Vertical: Dependent upon number of elements and line source curvature | |
Maximum SPL1 | 141 dB |
RMS handling capacity | LF: 450 W HF: 80 W |
Components LF: 2 x 8’’ neodymium weather-resistant HF: 1 x 3’’ neodymium diaphragm compression driver | |
Nominal impedance: LF = 8 ohms, HF = 8 ohms | |
Dimension (W x H/h x D) | 730 x 250/164 x 482 27.7 x 9.8/6.4 x 19 in |
Weight (net) | 26 kg 57.2 lbs |
Connectors | 2 x 4 Neutrik |
Material | birch plywood |
LA18S single 18 inch active subwoofer
Low frequency limit (-10dB) | 32 Hz |
Maximum SPL1 | 138 dB |
RMS handling capacity | 800W |
Components LF: 1 x18" neodymium woofer | |
Nominal impedance: 8 ohms | |
Dimension (W x H/h x D) | 750 x 540 x 707mm 29.5 x 21.3 x 27.8 in |
Weight (net) | 52 kg |
Connectors | 2 x 4 Neutrik |
Material | birch plywood |
Demo of LA208&LA18S from 200m distance
