Vera20 Dual 10'' 2 Way Line Array Speaker

1. compact lightweight speaker box
2. flexible installation
3. 2x10 inch NEO woofer, 1x1.4 inch NEO HF driver
4. birch plywood enclosure
Availability:
Quantity:
  • Vera20

  • Sanway

  • Dual 10 inch Line Array

Overview:


The VERA20 compact top line array speaker is configured with 2x10-inch low frequency Neo drivers and a 1.4-inch exit high frequency Neo drive.

Compared to a typical dual 8 "system, the VERA20 's two 10-inch powerful woofer are capable for delivering more than 6dB in low-mid frequency range and lower distortion.

 The 1.4-inch compression drive designed for provide a sparkling top-end, especially for speech intelligibility and exacting musical reproduction. Even in sensitive transition ranges, the low-frequency intersection of around 1 KHz guarantees a smooth and precise mid-range response.


VERA S32 audio subwoofer, a compact, hanging bass that can fly with the VERA20 system together. It has a 18-inch woofer in front and a 14-inch woofer in the back.

The Cardioid design allows the speaker to remove the unnecessary sound behind the equipment. This design can decreases over 15dB in the entire lower frequency spectrum.

On the other hand, the terminal mode maximizes the energy in the front meanwhile partially decrease the energy on the back. Because of this directional low-frequency setting, the Vera s32 can provide the distinctively solid and pleasingly musical low frequency performance.


Features:

  1. Vera20 line array speaker: 2x10 inch NEO woofer, 1x1.4 inch NEO HF driver.

  2. Vera S32 18 inch+14 inch subwoofer

  3. compact lightweight birch plywood cabinet box.

  4. Cardioid subwoofer enclosure design


Specification:


Vera20 Dual 10" Line Array Speaker

Drivers

1 × 1.4“ HF
  2 × 10“ LF

Frequency   range

63 Hz - 18000 Hz*

Power   capacity program / peak

1000 / 2000 W

Impedance

8 Ω

Coverage   (h × v)

80° or   120° × 12°

Sensitivity   1 W / 1 m

107 dB

SPLmax /   1 m

139 dB

Connection

speakON™   NL4 1±

Dimensions   (H × W × D)

284 ×   600 × 400 mm [11.18 × 23.62 × 15.75 in]

Weight

24 kg   [53 lbs]

Finish

polyurea   coating

Vera S32 18 inch + 14 inch Audio Subwoofer


Drivers

1 × 18“ LF (front)
  1 × 14“ LF (rear)

Frequency range

38 - 120 Hz

Power capacity program / peak

2400 / 4800 W (front)
  1400 / 2800 W (rear)

Impedance

8 Ω (front)
  8 Ω (rear)

Coverage

cardioid / hypercardioid

Sensitivity 1 W / 1 m

99 dB

SPLmax / 1 m

134 dB

Connection

speakON™ NL4 2± (front)
  speakON™ NL4 1± (rear)

Dimensions (H × W × D)

506 × 600 × 800 mm [19.92 × 23.62 ×   31.5 in]

Weight

54.2 kg [119 lbs]

Finish

polyurea coating

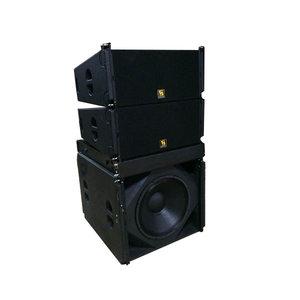

 vera20&S32 line array system



Demo video of Vera20 line array and S32 subwoofer and BSX dual 21 inch subwoofer:


Vera20 line array 10 inch woofer:

Vera20 10inch woofer 10NW76-16.pdf

Vera20 line array speaker 3" driver:

Vera20 3 inch HF driver data sheet DE910-8.pdf


S32 Subwoofer 18 inch and 14 inch woofer

S32 18 inch woofer18NW1002-8.pdf

S32 14 inch woofer 14NA100_8.pdf

Vera20 & S32 fly frame

Vera20 & S32 fly frame


Vera20 2IN1 flight case

Vera20 2IN1 flight case


S32 2in1 flight case

S32 2in1 flight case
