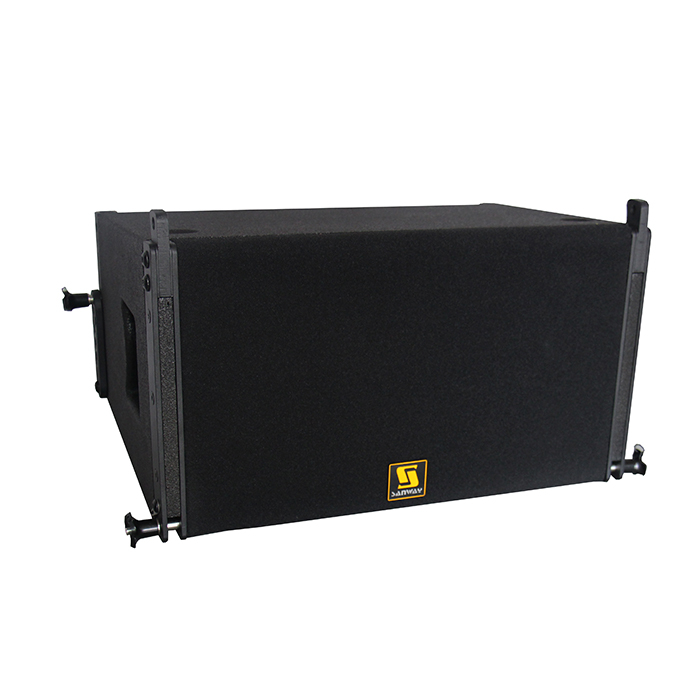

VR10 10 Inch Line Array Speaker For High-Quality Small-Scale Sound Solutions

1. Equipped with 1x10" woofer and 2x1" high frequency drivers;
2. compact cabinet box with width of 50 cm and height of 27 cm;
3. optional crossover inside;
4. Birch plywood cabinet enclosure;
5. scalable up to an array length of 18 elements.

Quantity:
  • VR10
  • Sanway

Description

The VR10 line array speaker is equipped with one 10" woofer and two 1" high frequency drivers. The horizontal dispersion can be set to 80 or 120 degrees by exchanging the mid-high horn. In the same series, we usually choose VERA S15 or VERA S30 to go with it. With only two tops flown or stacked, it is the ideal starting system for high-quality, small-scale sound solutions.

Features

1. consist of 1x10" woofer and 2x1" neodymium drivers;
2. compact cabinet box with width of 50 cm;
3. scalable up to an array length of 18 elements;
4. optional crossover inside;
5. Birch plywood cabinet enclosure.

Specification


Model VR10
Drivers 1 x 10" LF / 2 x 1.75" HF
Frequency range 60 - 16000 Hz
Power capacity program / peak: 500 / 1000 W bi-amped LF
200 / 400 W bi-amped HF
600 / 1200 W
Impedance 16 Ohms (bi-amp LF)
16 Ohms (bi-amp HF)
12 Ohms (passive)
Coverage range (h x v)         80°  x 10°
Sensitivity 1 W / 1 m 103 dB (bi-amp LF)
111 dB (bi-amp HF)
104 dB (passive)
SPL max / 1 m / peak         133 dB
Dimensions (h x w x d)         275 x 500 x 355 mm
Net Weight        16 kg
Finish         polyurethane coating

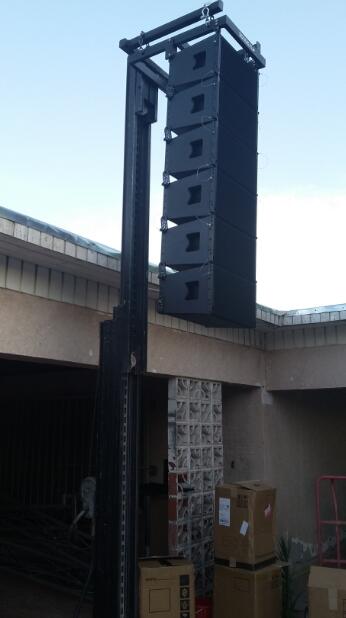

VR10 assemble:
VR10 assemblyVR10 assembly


VR10 Feedback Video

10 inch woofer of VR10 single 10 inch bi-amped line array  :

VR10 inch woofer 10NW65-16.pdf

1.75 inch  HF driver of VR10 of bi-amped line array loudspeaker :

VR10 1.75 inch HF driver DE400-8.pdf

VR10 woofer and drivers
