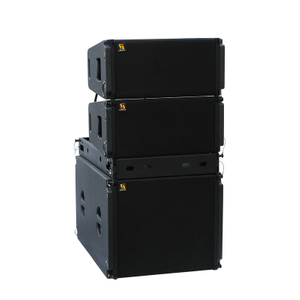

VERA36 & S33 Compact Vertical Line Array System

1. Ease and safety of operation, quick setup and dismantle
2. Coming with neodymium drivers inside with light weight
3. An 18" speaker at the front and a 15" speaker at the back in the sub
4. Birch plywood cabinet box
5. Impressive sound performance

Quantity:
  • VERA36 & S33
  • Sanway

Description

VERA36+S33 is a brother system of VR10+S30 Line Array System , a vertical line array speaker system created for medium to big vertical array applications . VR series comes quite simply from the way these loudspeakers are used in Vertical Arrays. With just two tops and one sub on each side, this system can even be used as a groundstack system for small events.

Features

1. Ease and safety of operation, quick setup and dismantle
2. The mid-high horn with 80° horizontally coverage, developed using WaveFormer, is easy to exchange for a 120° element.
3. Coming with neodymium drivers inside with light weight
4. Birch plywood cabinet
5. Superior quality

Application


1. Applied to the outdoor show the high quality of amplifiercation.

2. Can also be used to theater, stadium(hall), conference center.

3. Multi-function room or the concert hall, performing arts venues such as fixed installation sound reinforcement applications.

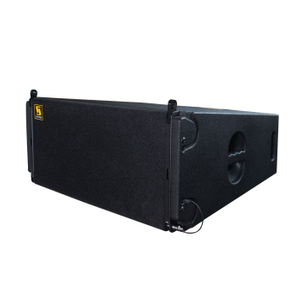

VERA36 Specification

Drivers 2 x 10" LF / 2 x 8" MF / 2 x 1.4" HF
Frequency range 60 - 16000 Hz
Power capacity programm / peak:
1000 / 2000 W     LF
800 / 1600 W       MHF
Impedance
8 Ohms LF    8 Ohms MHF
Coverage range (h x v)         80 ° x 10° oder 120° × 10
Sensitivity 1 W / 1 m
98 dB LF    110 dB MHF
SPLmax / 1 m / peak         141 dB
Dimensions (h x w x d)         310 x 700 x 580 mm
Weight        41.6 kg


VERA S33 Specification

Drivers 1 x 18" / 1 x 15"
Frequency range 33-120 Hz
Power capacity/ peaker
600 / 2400 W 18"
500 / 2000 W 15"
Impedance
8 Ohms 18"
8 Ohms 15"
Sensitivity 1 W/1M 99dB
SPL max/1m/peak 134dB
Connectors
NL4 1±= 15"
NL4 2± = 18"
Dimensions 606 × 700 × 800 mm
Weight 67.2 kg

Demo of Vera 36 line array and S33 subwoofer


Project case of Vera 36 dual 10 inch line array for outdoor live show

Sanway VERA 36 line array and KS28 subwoofer provided a wonderful performance to 38th Annual Belize Day




Vera 36 line array

10 inch woofer:

Vera 36 10 inch woofer 10NW650-16.pdf

8 inch mid driver

Vera36 8inch MF driver 8NMP52-16.pdf

3 inch HF driver:

Vera 36 3 inch HF driver DE800-8.pdf

S33 subwoofer

15 inch woofer:

S33 15 inch woofer 15SW100-8.pdf

18 inch woofer:

S33 18 inch woofer 18SW100-8.pdf
