V8&V-SUB Passive PA Audio Line Array System

1. V8: 2x10" LF; 1X8" MF; 2X3"HF neodymium drivers.
2. V-SUB: cardioid design 1x18inch and 1x12inch neodymium drivers.
3. Good quality birch wood cabinet box.
4. Fast installation rigging system.

Quantity:
  • V8&V-SUB
  • Sanway
  • passive

Overview:


The V8 is a 3 way passive column line array loudspeaker, equipped with a 10-inch low frequency drive, a hornloaded 8-inch medium-frequency drive, two 3-inch high frequency compression drives, and a 2.5-inch ring mounted in a wave-shaped device.

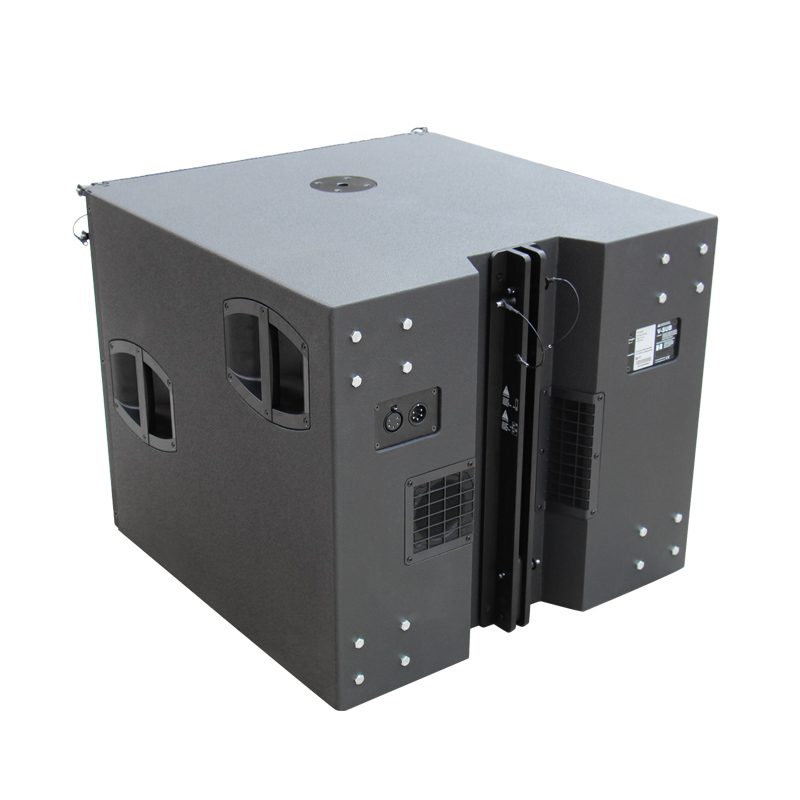

The V-SUB PA audio subwoofer is fitted with two long excursion neodymium drives in a cardioid construction cabinet box. The two drivers include a 18-inch low- frequency drive mounted in front of the inside box and a 12-inch drive in chamber bandpass designs that are mounted in backward radiation. In addition, its cardioid pattern allows the speaker to remove the unnecessary sound behind the equipement. It can be used as an extension of the V8 loudspeaker, or individually.


Application:


1. Nightclubs reinforcement

2. Bars/High-class KTV rooms speaker system

3. High-class hotels/ Theaters speaker box

4. Multi-functional halls

5. Permanent sound system installation


V8 3 way line array loudspeaker:


Frequency   response (–5 dB standard)

67 Hz - 18 kHz

Frequency   response (–5 dB CUT mode)

100 Hz - 18   kHz

Configuration

High   performance 3-way passive line array loudspeaker

Nominal   impedance

8 Ω

Power handling   capacity (RMS/peak 10 ms)

   500/2000 W

Components

2 x 10"   neodymium driver / 1 x 8" driver
  2 x 3" exit compression driver

Connections

2 x NLT4

 Weight and Dimensions



Dimensions (H   x W x D)

310 x 700 x   460 mm

Weight

34 kg



V-SUB 18" and 12 " power subwoofer:


Frequency response (–5 dB standard)

37 - 115 Hz

Configuration

High performance flyable cardioid subwoofer

Nominal impedance

8 Ω

Power handling capacity (RMS/peak 10 ms)

800/3200 W

Splay angle settings

0° and 2.5°

Components

1 x 18" driver
  1 x 12" driver

Connections

2 x NLT4 F/M
  optional 2 x NL4 or 2 x EP5


Dimensions, weight


Dimensions (H x W x D)

606 x 700 x 7283 / 830 mm

Weight

64 kg
