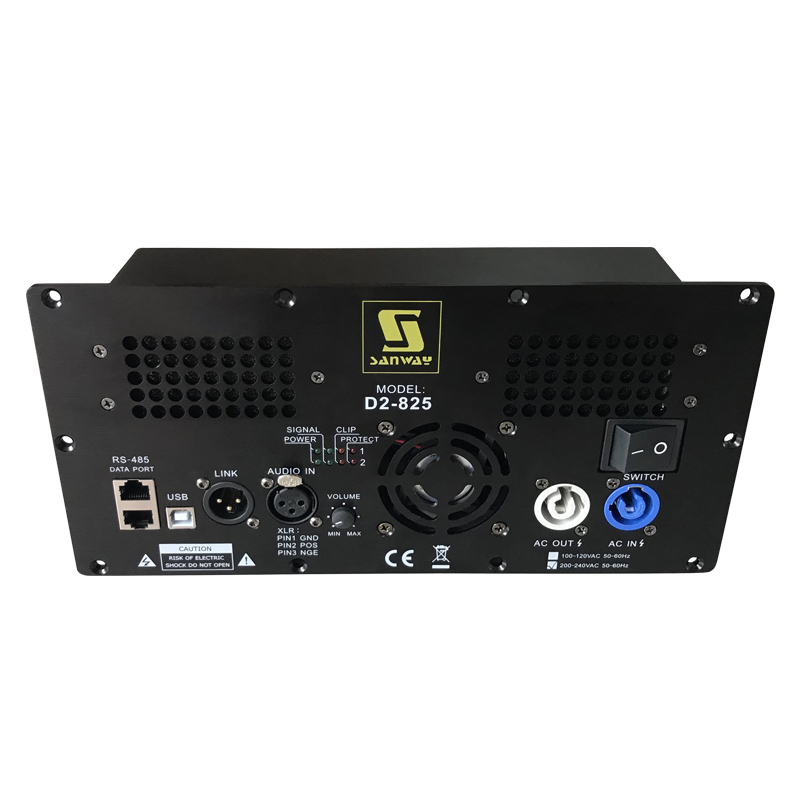

D2-825 800W 250W 2CH DSP Active Plate Amplifier for Bi-amp Speaker

1. 800W+250W at 8 ohms, APF function
2. Compact size perfect for bi-amped line array speakers and retrofitting existing passive designs
3. Each model of D2 series module is mounted an agile DSP module for versatile PA Systems Performance, you could manage this PA system via PC which connected with a USB or RS-485 cable

Quantity:
  • D2-825
  • Sanway

Description


D2-825 is a full range plate amplifier have power rating 800W+250W 8 ohms.

It is  perfect for bi-amped top speakers or column sound systems. By setting the crossover frequency, parameter equalizer, and latency capabilities for each channel, the possibilities are endless.



What's more, 4 additional  DSP control with MUTE, Polarity, Gain, Delay ,Limiter, Mixer, EQ, X-Over and APF function was provided by this 2 channel plate amplifier with all the features you would expect from today's active PA speakers.


Features

1. 800W+250W at 8 ohms

2. Compact size perfect for bi-amped line array speakers and retrofitting existing passive designs

3. Each model of D2 series module is mounted an agile DSP module for versatile PA Systems Performance, you could manage this PA system via PC which connected with a USB or RS-485 cable


Specification


ITEM/MODLED2-825
 Output Power
 8Ω Stereo Power800W+250W

Frequency Response20Hz-20KHz ±1dB
THD+N 1KHz 1W 8Ω<0.1%
Signal to Noise Ratio  1KHz>100dB
Channel Separation  1KHz>80dB
ClassD
ProtectionShort, DCP, OVP, UVP, OCP, OTP
Operating Voltage110V version: 90V-135V / 220V version: 180V-265V
Input Sensitivity0.77V
Input Impedance20KΩ
DSP FuctionMUTE, Polarity, Gain, Delay,
Limiter, EQ, X-Over, APF
DSP ControlUSB and RS-485
Dimensions(W×H×D) mm285*136*100mm
Packing Dimension (mm)345*170*160mm
Net Weight(kg)2.5
Gross Weight(kg)3.5
