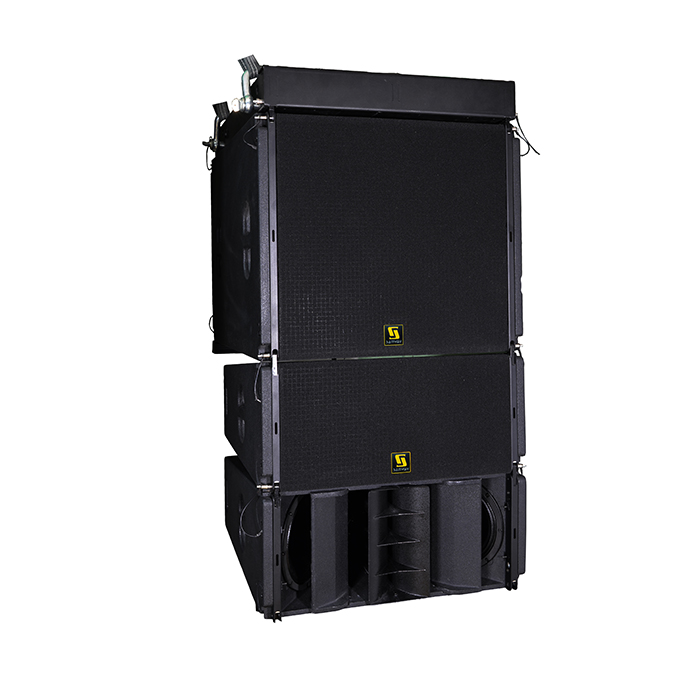

VERA36&S33 10 inch Tops and 15 18 inch Subs Powered Active Line Array System

1. Ease and safety of operation, quick setup and dismantle;
2. An 18" speaker at the front and a 15" speaker at the back in the sub;
3. Cabinet box is made of Birch plywood;
4. Mounted one Sanway customized amplifier module D3-2CH in the subs;
5. Mounted one Sanway customized amplifier module D2L-TWO in the tops.
Availability:
Quantity:
  • VERA36&S33
  • Sanway
  • Dual 10 inch Line Array

Description

Vera 36 is consists of two 10 inch neodymium LF drivers, two 8 inch neodymium MF drivers, and two 1.4 inch neodymiume HF drivers in the compact birch cabinet box.

To make a full system, we have S33 subwoofer couple with Vera 36. S33 is a 18"+15"subwoofer, to provide lound bass and efficient frequency.


VERA36+S33 is a similar system of VR10+S30 Line Array System, a vertical line array speaker system created for medium to big vertical array applications . VR series comes quite simply from the way these loudspeakers are used in Vertical Arrays. With just two tops and one sub on each side, this system can even be used as a groundstack system for small events. The powered version is mounted one Sanway customized amplifier module D2L-TWO in the tops, which is 2x500w at 8ohms ; 2x900w at 4ohms 2 channel plate amplifier with DSP function, and the subs is mounted one Sanway customized amplifier module D3-2CH, which is 1500+1500w at 8ohms ; 1800+1800w at 4ohms 2 channel plate amplifier with DSP function.


Features


1. Ease and safety of operation, quick setup and dismantle;
2. Coming with neodymium drivers inside with light weight;
3. Cabinet box is made of Birch plywood;
4. An 18" speaker at the front and a 15" speaker at the back in the sub;
5. Mounted one Sanway customized amplifier module D2L-TWO in the tops;
6. Mounted one Sanway customized amplifier module D3-2CH in the subs.


Application

1. Applied to the outdoor show the high quality of amplifiercation.

2. Can also be used to theater, stadium(hall), conference center.

3. Multi-function room or the concert hall, performing arts venues such as fixed installation sound reinforcement applications.

Specification


Vera 36 dual 10 inch 3 way bi-amped line array


Model VERA36
Drivers 2 x 10" LF / 2 x 8" MF / 2 x 1.4" HF
Frequency range 60 - 18000 Hz
Power capacity programm / peak:
1000 / 2000 W     LF
800 / 1600 W       MHF
Impedance
8 Ohms LF    8 Ohms MHF
Coverage range (h x v)         80 ° x 10° oder 120° × 10
Sensitivity 1 W / 1 m
98 dB LF    110 dB MHF
SPLmax / 1 m / peak         141 dB
Dimensions (h x w x d)         310 x 700 x 580 mm
Weight        47 kg powered


S33 subwoofer

Model S33
Drivers 1 x 18" / 1 x 15"
Frequency range 30-150 Hz
Power capacity/ peaker
600 / 2400 W 18"
500 / 2000 W 15"
Impedance
8 Ohms 18"
8 Ohms 15"
Sensitivity 1 W/1M 99dB
SPL max/1m/peak 134dB
Connectors
NL4 1±= 15"
NL4 2± = 18"
Dimensions 606 × 700 × 800 mm
Weight 63 kg powered


Demo Video of vera 36 DJ line array and S33 DJ subwoofer:

Vera 36 self powered line array

10 inch woofer:

Vera 36 10 inch woofer 10NW650-16.pdf

8 inch mid driver

Vera36 8inch MF driver 8NMP52-16.pdf

3 inch HF driver:

Vera 36 3 inch HF driver DE800-8.pdf

S33 subwoofer

15 inch woofer:

S33 15 inch woofer 15SW100-8.pdf

18 inch woofer:

S33 18 inch woofer 18SW100-8.pdf

Vera36 2IN1 flight case

Vera36 2in1 flight case


Vera36 2in1 flight casse

Vera36 2in1 flight casse


Vera36 fly frame

Vera36 fly frame


S33 1in1 flight case

S33 1in1 flight case
