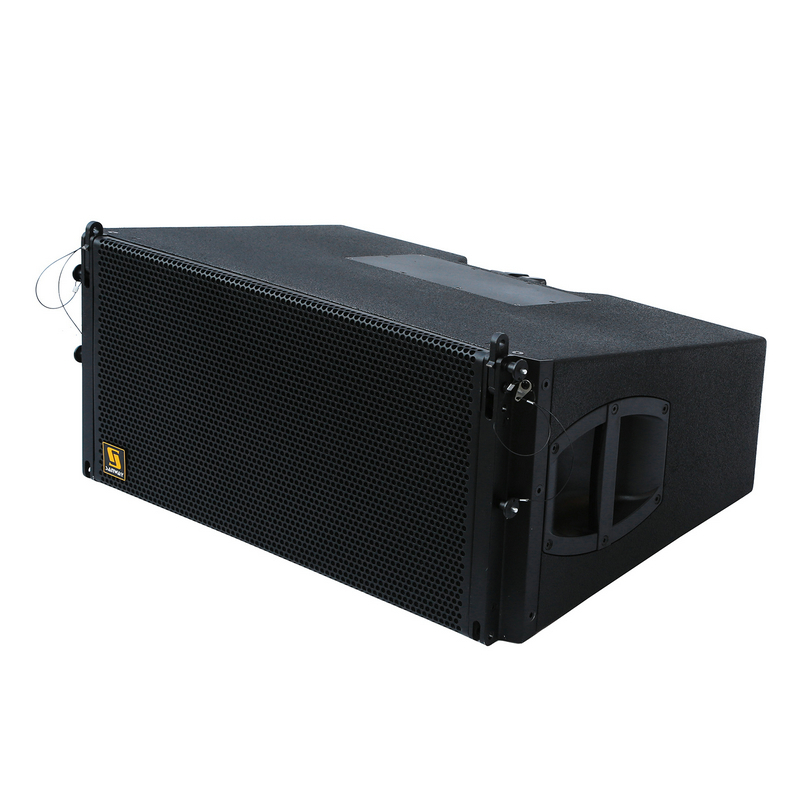

V8 3 Way Dual 10 inch Column Line Array Loudspeaker for Concert Audio

The V8 is a 3-way, high performance, bi-amped line array. The two 10” neodymium drives, one horn-loaded 8” MF driver and two 2.5” HF compression drivers, housing in a compact birch-wood cabinet box

Quantity:
  • V8
  • Sanway
  • Dual 10 inch Line Array
  • passive

Description:


The V8 is a 3-way, high performance,passive line array. It incorporates two 10” neodymium drives one hornloaded 8” MF driver to deliver high energy bass and accurate voice & sound reproduction. Two 3” HF compression drivers transducers in a vented enclosure for clear& smooth high frequency. It can be used in columns of purely V8 loudspeakers or combined with V-SUBs.

The V8 cabinet box is made by compact birch plywood enclosure, with a multi-layered weather protected finish, will withstand the most demanding portable applications.

V8 Line array loudspeaker is designed as a compact high performance system to deliver high quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types for both portable users and fixed venue installations.


Features:


  1. 2x10" LF; 1X8" MF; 2X2.5"HF neodymium drivers.

  2. High quality compact birch wood enclosure.

  3. Muti-layered weather protected finish.

  4. For protable usesing and fixed venue application.


Specification:

Frequency   response (–5 dB standard)

67 Hz - 18 kHz

Frequency   response (–5 dB CUT mode)

100 Hz - 18   kHz

Configuration

High   performance 3-way passive line array loudspeaker

Nominal   impedance

8 Ω

Power handling   capacity (RMS/peak 10 ms)

   500/2000 W

Components

2 x 10"   neodymium driver / 1 x 8" driver
  2 x 1.4" exit compression driver

Connections

2 x NLT4

 Weight and Dimensions


Dimensions (H   x W x D)

310 x 700 x   460 mm

Weight

34 kg

V8&V-SUB products details


V8 dual 10 inch line array assemble

V8 line array assemblyV8 line array

V8 line array birch plywood boxes


V8 birch plywood cabinet boxes


Demo of V8 and V-SUB
