Sanway Pa Karaoke System

K-600 Double Channel UHF Wireless Microphone
MK-4500 2x350W Double Channel Karaoke Power Amplifier
MK-12 Single 12” Passive Karaoke Speaker
  • Karaoke system

  • Sanway

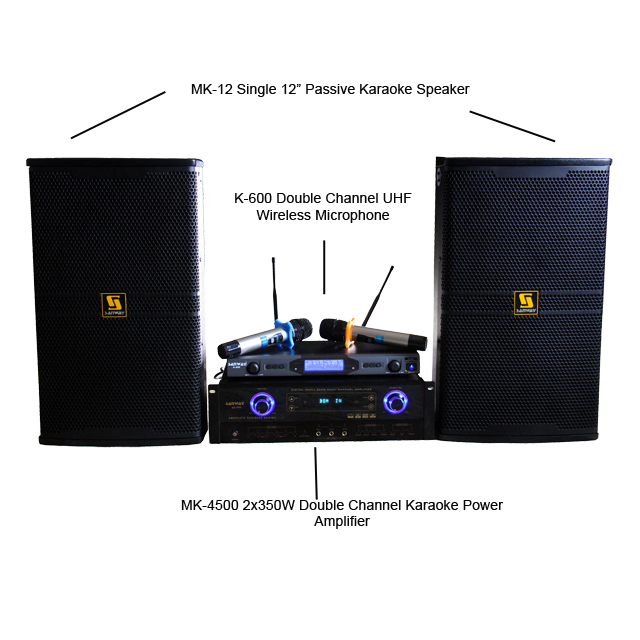

Sanway Karaoke System consists of MK-12 single 12" passive karaoke speaker, MK-4500 2 x 350W 2 channel karaoke power amplifier. and K-600 2 channel UHF wireless microphone.
pa system

MK-12 Single 12” Passive Karaoke Speaker

Frequncy Response (-10 dB): 71 Hz - 20 KHz
Frequncy Response (±3 dB): 90 Hz - 20 KHz
Sensitivity (1w/1m): 97 dB; Peak: 130 dB
Rated Impedance: 8 Ohms
Rated Power: 350 W; Peak: 700 W
Radiated Angle: 70° x 60° (H x V)
Dimension (H x W x D): 600 mm x 350 mm x 382 mm
Net Weight: 14.7 Kg
LF Driver: one 12” woofer
HF Driver: one 1.4” Tweeter
Connectors: 2 Neutrik® Speakon® NL4MP
Cabinet Box: 15mm MDF

MK-4500 2x350W Double Channel Karaoke Power Amplifier

Characteristics Details

1>. dual fan, temperature control switches, two-stage wind speed.
2>. duct fins: rapid cooling to reduce the overall machine one temperature, increasing the power of the long-term stability.
3>. strong institutions, integrally molded foam packaging: fully address the possibility of damage caused by rough transport.
4>. gold-plated signal socket: Reduce noise signals caused by poor contact.
5>.1.5 square crude direct connect the power cord: Make sure the power amplifier will not be too thin wire, current or insufficient supply
6>. music BBE dynamic compensation circuit: solve the problem of poor quality computer VOD, VOD and access control to open and close.
7>. the board still left double / single-turn adjustment knob reverb, change orders for customers interested in / Twin Reverb effect
8>. the center speaker volume / treble / bass adjustment knob at the rear panel, and you can choose whether the microphone with reverb and the proportion of music in the home.
9>. export professional Toroidal transformer, built-in 105 ° impact sound protection automatic disconnection device, and is completely without power on / off time.
10>. HI-FI grade capacitors and special agents available genuine amplification sealed tube, to maintain HI-FI-class sound quality.

Input Sensitivity / Impedance
KARAOKE: 200mv / 22
DVD: 300mv / 22
BGM: 300mv / 22
MIC: 17mv / 3.3
Output Power
SUB WOOFER (150Hz): 2.5V
VIDEO OUT: 1Vp / P75
Microphone Tone Adjustment
BASS: ±10dB (100Hz)
MID: ±10dB (2Hz)
TREBLE: + 10dB (10KHz)
Power Supply: 220VAC 50Hz
Power Output: 2x350W@8ohms
Dimensions: 435x135 x400mm (W*H*D)
Net Weight: 12.5Kg

K-600 Double Handhold UHF Karaoke Wireless Micophone

Frequency Range: UHF 500MHz ~ 900MHz (optional)
Modulation: FM (PLL)
Deviation: ± 25kHz / ± 48kHz
Frequency stability: ± 15ppm
SNR: 110dB (A)
T.H.D 0.1%
Operating temperature: -10 ° C ~ +55 ° C
Receiving Forms: true diversity reception
Sensitivity (peak deviation): 3uV (52dB S / N)
Audio output level: Balanced Output: + 10dB (XLR); Unbalanced outputs: + 4dB (1/4 ", 6.3mm jack socket)
Adjacent channel interference ratio: 80dB
RF transmit power (50): 8mW ~ 30mW
Harmonic Suppression: > 50dB
