D20K
Sanway
Dual 8 inch Line Array
Description:

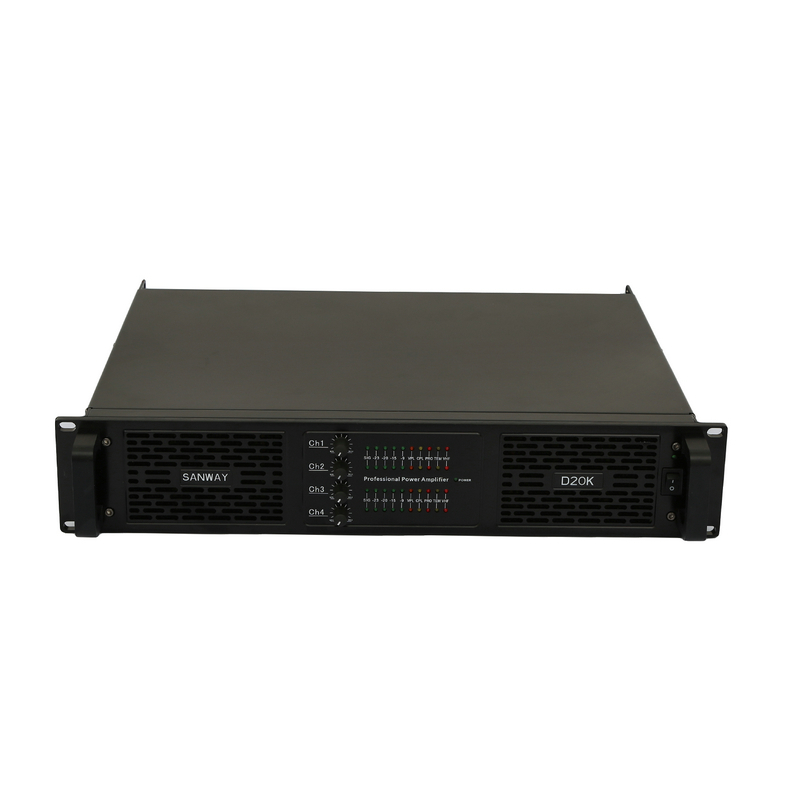

D20K is a 4x2100W at 8 ohms, 4x4000W at 4 ohms class-d power amplifier. You may also called it FP20000Q power amplifier. The difference between our D20K (FP20000Q) with other suppliers’ is that we are using class d technology for the amplification stage with high power mosfet, high efficiency and unique cooling system.
D20K ( FP20000Q) is design to achieve unparalleled acoustic performance and long-term reliability, even when operating under extremely harsh conditions.
It also have multiple detection, multiple protection: soft start, the second start, the (low) pressure protection, output overload and short circuit protection.
Features:
Class D amplification stage
SMPS power supply
Innovated high-efficiency cooling system with special design for fast cooling
Super power; compact circuit inside, high efficiency and lightweight
Specification:
Model | D20K |
Output Power | |
8Ω Stereo Power | 4×2100W |
4Ω Stereo Power | 4×4000W |
8Ω Bridged Monon Power | 2×10000W |
Frequenty Response | 20Hz-20kHz ±0.5dB |
THD+N(Rated power,4Ω/KHz)% | 0.10% |
Signal Noise Ration(dB) | 110dB |
Input Impedance | 20KΩ Balanced / 10kΩ Unbalanced |
Output Connectors | Speakon Connectors(NEUTRIK) |
Power Requirement | 100-120V-50-60Hz or 200-240V-50-60Hz |
Dimension | 483×377×88mm |
Net weight | 13kg |
