D80
Sanway
Product Overview

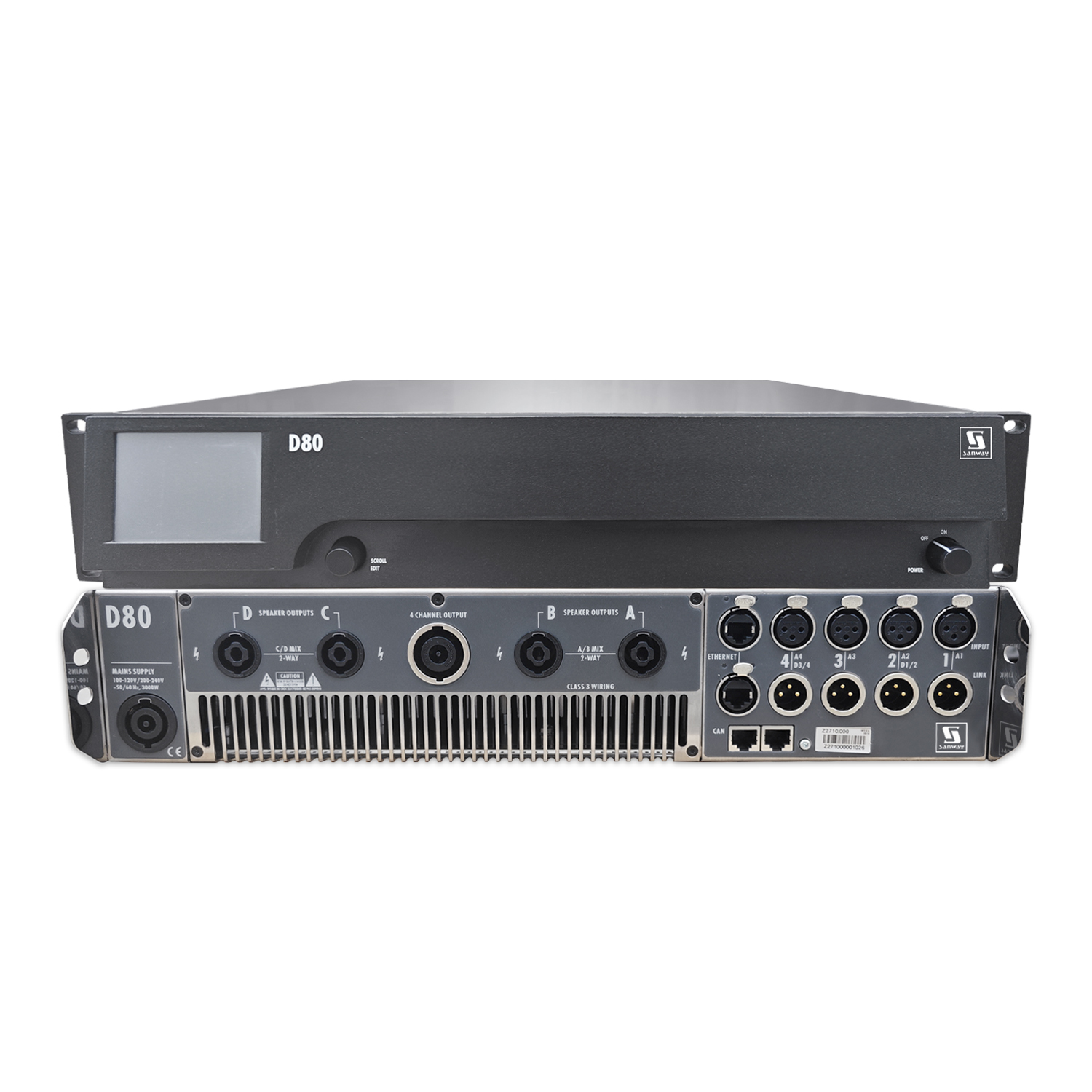

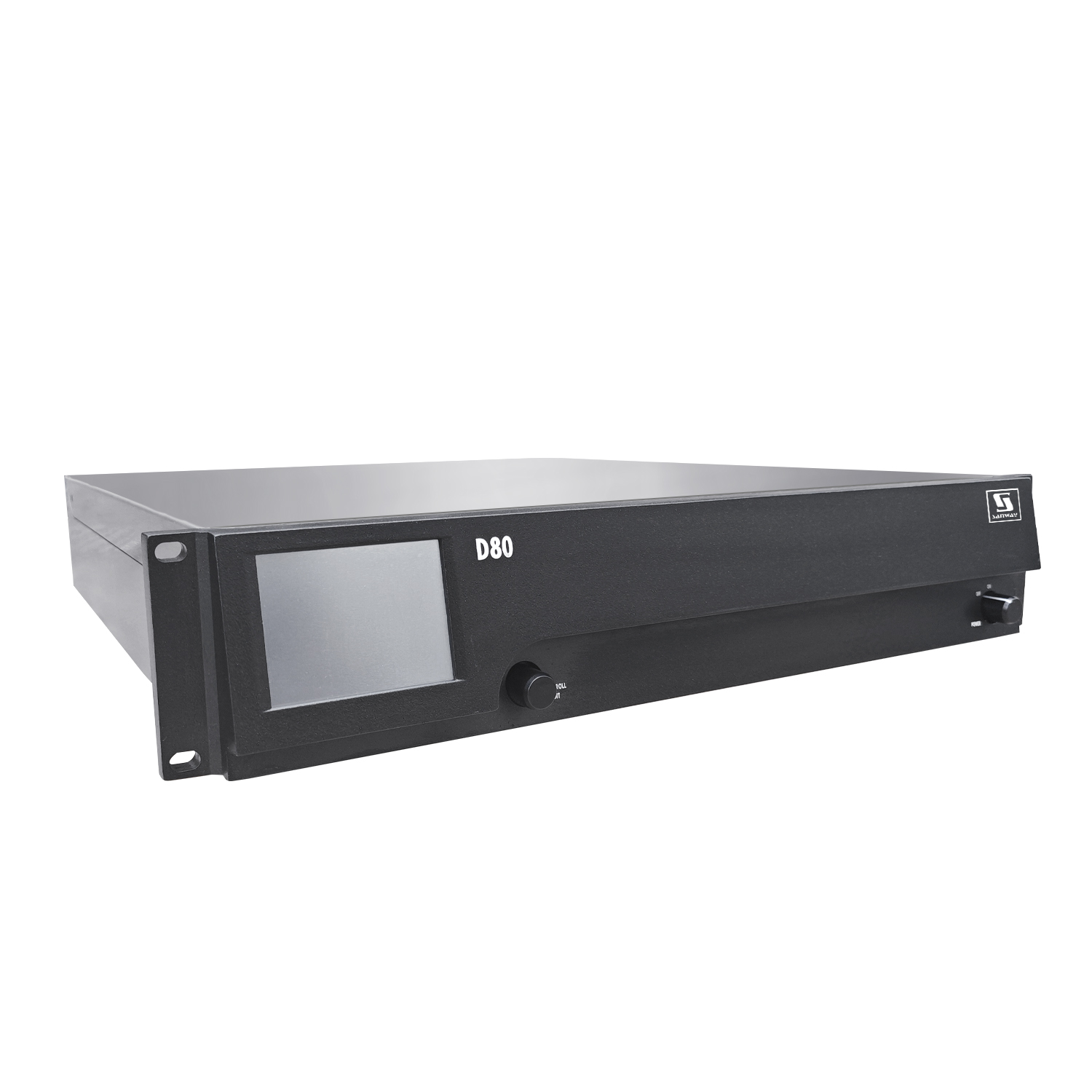

The Sanway D80 is a state-of-the-art four-channel power amplifier engineered for professional audio systems, delivering exceptional headroom and sonic clarity in even the most demanding Sanway loudspeaker configurations.
Massive Output:
4 × 2000 W into 8 Ω
4 × 4000 W into 4 Ω
Advanced DSP:
German-designed DFM® NET ControlFX DSP engine
Flexible routing, dynamic EQ, delay, crossover, and limiter presets
Intuitive Interface:
3.5″ / 320 × 240 pixel full-color TFT touchscreen
Quick-access menus for on-the-fly adjustments
Efficient Power Management:
Auto-sensing switch-mode power supply (SMPS)
Active Power Factor Correction (PFC) for stable, green operation
Key Benefits
Unbeatable Reliability:
Robust SMPS with Active PFC ensures consistent voltage under all load conditions and reduces mains distortion.
Precision Control:
DFM® NET ControlFX DSP offers studio-grade processing in a live-sound amplifier, with memory slots for quick recall of custom presets.
Seamless Integration:
Pre-configured for Sanway setups, the D80 instantly recognizes and optimizes speaker parameters for plug-and-play performance.
Specifications:
MODEL: | D80 16000W 4 Channel Class D Audio DSP Power Amplifier |
Input: | 4 channel |
Output: | 4 channel |
Processor: | DFM® NET ControlFX DSP |
Dynamic range: | >110dB |
Frequency Response: | ±0.1dB, 20Hz --- 34KHz |
Distortion: | < 0.01%, 20Hz - 20KHz @ +10dBu balanced input |
Signal to noise ratio: | >120dB |
Output Power | |
8Ω Stereo Power | 4×2000W |
4Ω Stereo Power | 4×4000W |
Input Impedance | 20KΩ Balanced / 10kΩ Unbalanced |
Output Connectors | Speakon Connectors(NEUTRIK) |
Power Requirement | 100-240V-50Hz |
Protection | Short circuit, open circuit, thermal, overload, DC, super audio protection |
Dimension | |
Airframe | 2 RU x 19" x 530 mm/20.9" 19 kg/42 lb |
Application:
Large-Scale Concerts & Festivals
Time-aligned delay, LoadMatch compensation, and high power make the D80 perfect for multi-zone festival stages and arena shows.
Theater & Performing Arts
Precise per-channel EQ and delay ensure clear, natural dialogue and music reproduction over long cable runs.
Fixed Installations
Houses of worship, corporate auditoriums, and education facilities benefit from built-in DSP presets and networked remote control.
Rental & Touring
Road-ready rack configurations with integrated power distro and NL8 panels streamline setup for rental houses and production companies.
Nightclubs & Live Venues
High-headroom output, LoadMatch cable compensation, and onboard DSP let you dial in tight, punchy loudspeaker performance.
