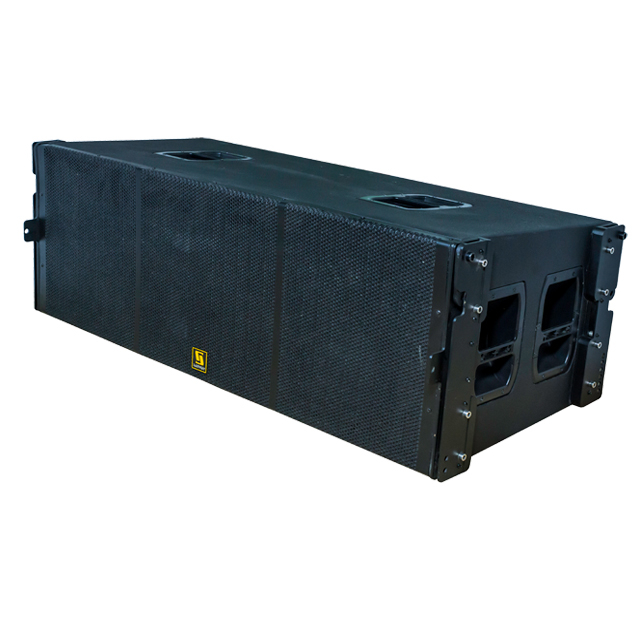

Aero50
Sanway
Dual 15 inch Line Array
Description
Areo 50 units using the most advanced technology, high quality technology of voice coil, neodymium magnet and constitute a durable high efficiency cooling system. Higher power handling capacity, lower power consumption, higher reliability is the most important.
Neodymium magnets of high frequency reproduction depend on the new compressed drive, combined with exclusive waveguide horn, sound consistent directivity control.
Compact enclosure is used multilayer plywood, and topical black coating of the wear-resistant. Speaker trapezoidal box and rear position angle adjustment plate.
Designed to ensure consistent distance between adjacent template, viewedfrom the front, the entire line array "seamless" and the whole line array.
Appearance. Powerful hanging system allows for greater bend angle. Other features, such as one of the bolt slot, advanced suspension accessories together for safety and convenience.
Features
- Three-way large-format line array module
- Two 15 loudspeakers with neodymium magnet line array
- Four 8 loudspeakers with neodymium magnetic line array speaker
- Two neodymium compression driver with 1.5" exit line array system
- Captive rigging system integrated in the cabinet design
- Detachable front dolly panel
Application
1. Churches, Museums, Sports venues, Conference centres,
2. Theatres, Auditoria, Shopping malls, Transport terminals,
3. Concert halls, Bars, Restaurants, Lecture theatres
Specification
Frequency Range (-10 dB) | 45 Hz- 20 kHz |
Horizontal Coverage (-6 dB) | 90º Nominal |
Vertical Coverage | Splay Dependent |
RMS Power Handling | LF 2 x 700 W |
On-axis Sensitivity 1 W / 1 m | LF: 99 dB SPL |
Rated Peak SPL at 1 m | LF: 136 dB |
Nominal Impedance | LF: 8+8 ohms |
Recommended Amplifier Power | 4 amps 2 x 1400 @ 4 ohms |
Enclosure Material | Plywood |
Color/Finish | Black/Paint |
Connectors | 2 x NL8 Neutrik Speakon |
Dimensions (H x W x D) | 47.5 x 135 x 62.7 cm |
Weight | 85 kg |
Birch plywoof boxes of Aero 50 dual 15 inch column line array
