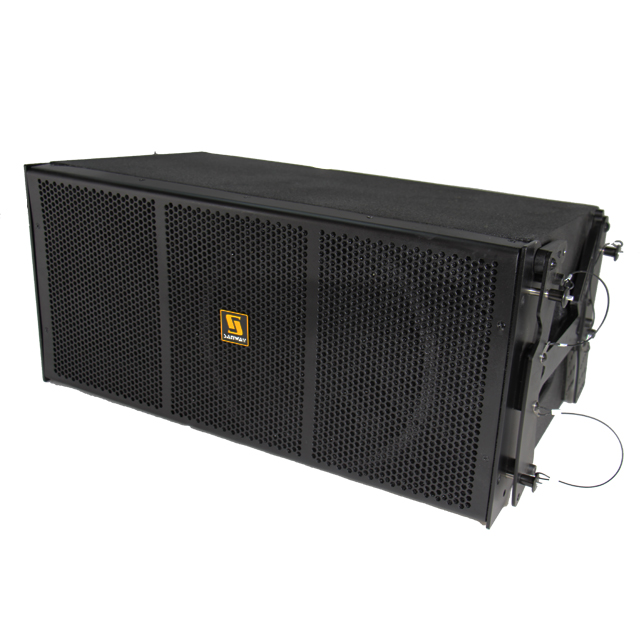

Aero 12
Sanway
Single 12 inch Line Array
Description
Aero 12 is a bi-amped line array system, features with a single 12 neodymium LF driver and a 3 inch compersion HF driver. The Aero 12 cabinet is constructed from birch plywood, incorporates a pair of handles and has a compact resistant paint finish. This easily install and portable sound system is perfect for versatile installation or touring.
Features
1. Easy plus-in installation and use.
2. Minimum cable wiring and low cost of maintenance.
3. Supply with secure steel ring for easy installation.
Applications
Versatile installation for conference room, auditorium, stadium, concert & bar.
1. Arenas
2. Convention Centers
3. Large Ballrooms
4. Stadiums
5. Portable PA, clubs, live theatre
6. Delay systems for large scale outdoor sound reinforcement
7. Auditoriums
Specifications
Nominal HF Amplifier Power | 100 W |
Nominal MF Amplifier Power | 500 W |
Frequency Range (-10 dB) | 63 Hz-20 kHz |
Rated Peak SPL at 1 m | 134 dB |
Horizontal Coverage (-6 dB) | 90º Nominal |
Vertical Coverage | Splay Dependent |
Color/Finish | Black Paint |
Connectors | 2XNL-4 |
LF Driver | 1x12inch Neodymium Woofer |
HF driver | 1x3inch Neodymium Compress Driver |
Dimensions (H x W x D) | 31.6 x 68.8 x 38.5 cm |
Weight | 35KG |
