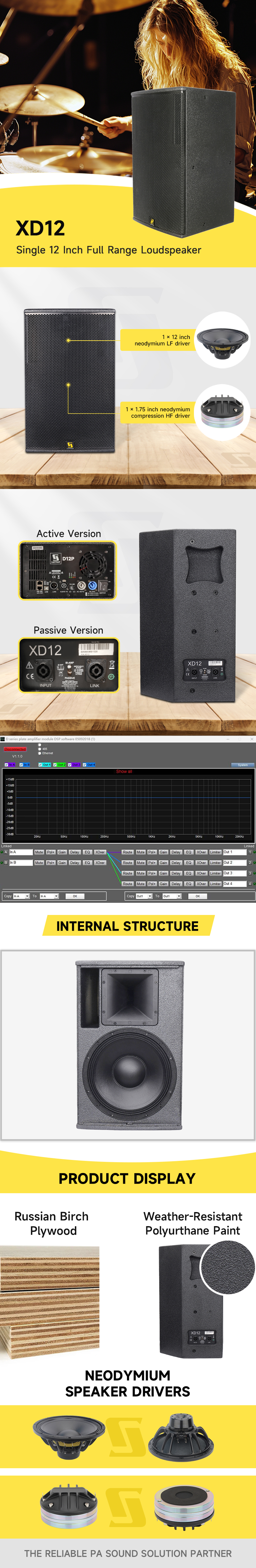

XD12 12" Two Way Loudspeaker High-Power PA Stage Monitor

Product Overview:
The XD12 is a high-performance, high-output, two-way loudspeaker system designed for portable live sound, theatre applications, and fixed installations. It features a premium 12” (300mm) low-frequency driver and a 1” (25mm) exit compression driver mounted on a rotatable 80° x 50° constant directivity horn. With a compact, multi-angle enclosure and flexible mounting options, the XD12 delivers exceptional audio performance and versatility for any professional sound application.

Key Features:

• High-output, professional-grade two-way loudspeaker

• Compact, multi-angle plywood cabinet for flexible deployment

• 12" LF driver with 3" (75mm) voice coil, long-excursion, low-distortion neodymium motor

• 1" exit HF neodymium compression driver with 1.7" polyimide dome

• User-rotatable 80° x 50° constant directivity horn

• Switchable passive or bi-amp crossover configuration

• 8-ohm nominal impedance

• Integrated pole-mount socket and M8 rigging points

• Wide range of mounting accessories for surface, ceiling, pole, or flown installation




Ideal Applications:

• Portable live sound reinforcement

• Theatre sound systems

• Fixed installations in venues, houses of worship, and public spaces

• High-power stage monitoring

• AV presentations and corporate events




Advanced Technical Design:
The XD12's 12” LF driver uses a lightweight 3” voice coil and demodulation rings to minimize distortion under high excursion. Its high-efficiency neodymium motor system ensures low weight and excellent sensitivity. An advanced cooling system further reduces power compression for consistent output.

The 1” exit HF compression driver includes a 1.7” polyimide dome and ultra-high flux neodymium magnet, along with a copper cap for extended high-frequency response and superior efficiency.

The built-in crossover is user-switchable between passive and bi-amp operation, providing ultimate flexibility for different system configurations.

Specification:
