SA15
Sanway
NON
Overview:

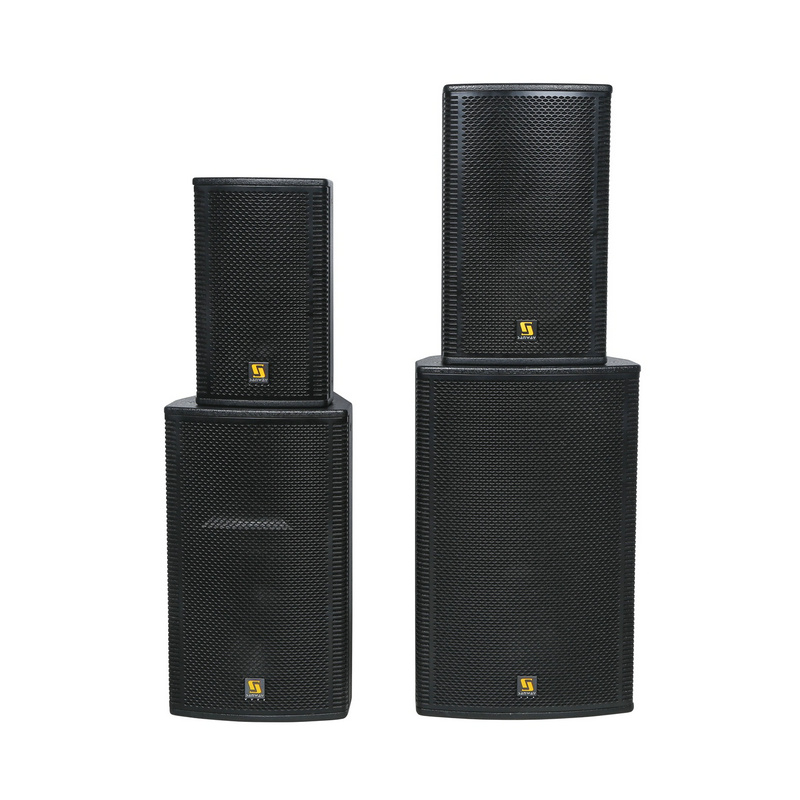

SA15 top professional speaker consists of one 15 inch and one 3 inch speaker drivers. It is perfect for any application, like theatre sound reinforcement, live music stages, decentralized sound reinforcement of large rooms and delay systems for remote areas or as a compact mid-high system .
SA15 stage audio speaker cabinet construction is made of birch plywood and has an extremely robust black coating. The steel protective grille with sound-absorbing fleece is a further feature of this high-quality product.
The rear-mounted connection plate with 2xspeakON NL4 and the passive crossover.
At the bottom there is a pole mount socket to accept and standard 35mm speaker stands.
15 inch Full Range Speaker Features:
Compact and lightweight cabinet
One 15 inch high power LF speaker driver
One 3 inch high sensitivity HF speaker driver
Versatile application for PA or monitor
Active and passive are selectable
SA15 single 15 inch full range stage audio speaker Specification:
Model | SA15 |
Frequency Response (±3 dB) | 55 Hz - 20 kHz |
Sensitivity (1w/1m) | 99 dB SPL |
Long-term SPL | 125 dB |
Maximum SPL | 131 dB |
Low Frequency Driver | 1×15 inch Cone driver(200mm magnet) |
High Frequency Driver | 1×3 inch compression driver |
Nominal Impedance | 8ohms |
Power rated(rms) | 500 watts |
Peak Power handling | 2000 watts |
Radiation Angle | 80 °H x 50 °V Rotatable Horn |
Dimensions (H x W x D) | 686×430×430mm |
Enclosure Material | 15mm plywood |
Surface Finished | black catalyzed polyurethane paint |
Grille | 1.5mm black perforated steel framed mounted black acoustic foam |
Net weight | 28kg / 29.5kg powered |
Input Connectors | Neutrik NL4MPX2 |
