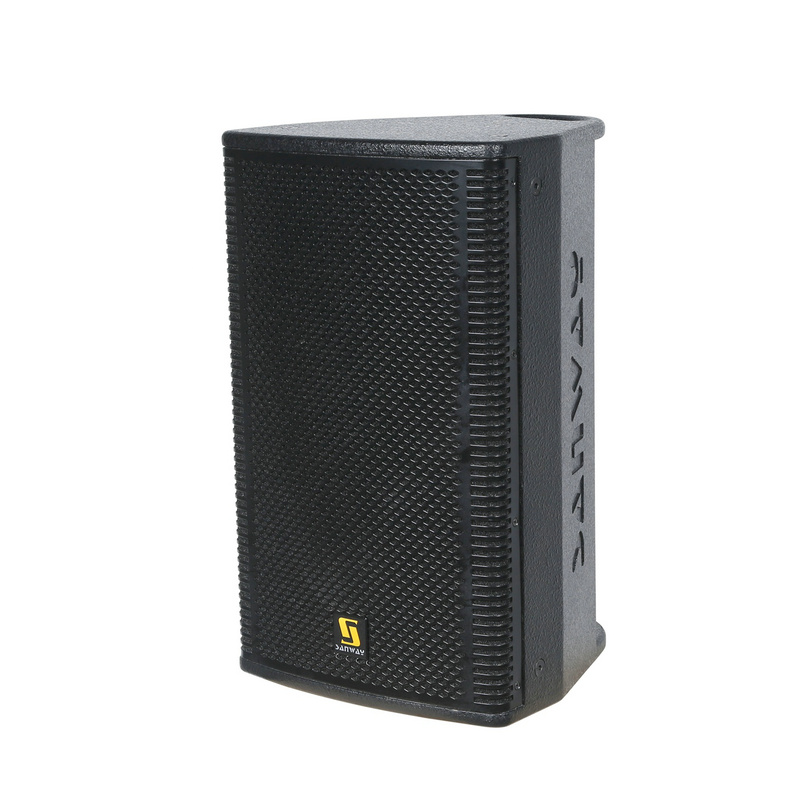

SA8
Sanway
NON
Overview:
SA8 full range speaker consists of one 8 inch low frequency driver and one 1.75 inch high frequency driver to ensure the true and natural, high-fidelity reproduction of music and voice. This wooden speaker cabinet is equipped with a slim and elegant front grille. It makes the speaker suitable for an environment where music is a key element, but it will not compromise its design. From modern and trendy clubs to bars and dance halls, the extra impact and depth of music are appreciated.
Pro Audio Speaker Features :
Vertical and horizontal mounting
Lightweight and compact
1x8 inch LF driver and 1x1.75 inch HF driver
Full rang enclosures for PA or monitor application
Active and passive are available.
Full range PA Audio Speaker Specification:
Model | SA8 |
Frequency Response (±3 dB) | 70 Hz - 20 kHz |
Sensitivity (1w/1m) | 92 dB SPL |
Long-term SPL | 114 dB |
Maximum SPL | 120 dB |
Low Frequency Driver | 1×8 inch Cone driver(170mm magnet) |
High Frequency Driver | 1×1.75 inch Neodymium driver |
Nominal Impedance | 8ohms |
Power rated(rms) | 200 watts |
Peak Power handling | 800 watts |
Radiation Angle | 90 °H x 50 °V Rotatable Horn |
Dimensions (H x W x D) | 426×255×273mm |
Enclosure Material | 15mm plywood |
Surface Finished | black catalyzed polyurethane paint |
Grille | 1.5mm black perforated steel framed mounted black acoustic foam |
Net weight | 9.5kg / 10.5kg powered |
Input Connectors | Neutrik NL4MPX2 |
