F3500
Sanway
2x1050W
2x1600W
2x2100W
3200W
4200W
<0.05%
<0.01%
>-60dB
33.5kg
37kg

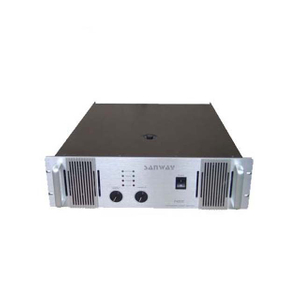

F3500 2 Channel 1050W Low Frequency Power Amplifier
Features
1 . Large efficient transformer, bulk capacitor filtered power, have extremely low distortion in full load, more powerful low-frequency control and more clear sound.
2. Dual channel progressive cooling system, build in thermostat. Electronic fans cooling the amp from rear to front, avoid overheating.
3. Adopting SMT Surface Mounting Technology, ensure good consistency.
4. Soft-start, overcurrent, shortcircuit, overheating, DC, distortion, voltage limiting protect the amp from the damage of man-made and environment.
Specification
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20Hz-20kHz,-3dB@135kHz |
| Power Bandwidth | 20Hz-20kHz, -.1.1dB/+0dB |
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, |
| THD+N (1kHz 1W ) | <0.05% |
| SMPTE IMD (rated power. 60 Hz & 7kHz) | <0.01% |
| Damping Factor ( 1KHz) | 248 |
| Input CMRR (1kHz) | >-60dB |
| Voltage Gain (rated power @ 8Ω) | X40dB |
| Input Sensitivity (rated power at 8Ω) | 0.7746V |
| Input Impedance (balanced/unbalanced) | 20KΩ/10KΩ |
| S/N Ratio ("A"weighted, full power at 4Ω) | 96.5dB |
| Crosstalk ("A"weighted, full power@4Ω) | >-65dB |
| Class | 3 Step H |
| Input Connectors (per channel) | Female XLR (pin 2+, configurable for pin 3+). TRS (tip+) |
| Output Connectors (per channel) | 5-way binding posts or Speakon connectors (market dependent) |
| Power Supply (factory configured) | AC220V/230V,50-60Hz |
| Cooling | Two side panel variable speed DC fans, better than |
| Controls | Front panel: 2 attenuators, power switch; Rear panel: signal |
| LED Indicators (per channel) | Signal, Protect, Active, Critical |
| Construction | Steel chassis, 16 gauge . Casting Aluminum front panel. |
Application
1>. Arenas
2>. Convention Centers
3>. Medium or large Ballrooms
4>. Perfect for corporate
5>. Theaters Music
6>. Club or Church
7>. Concert reinforcement
