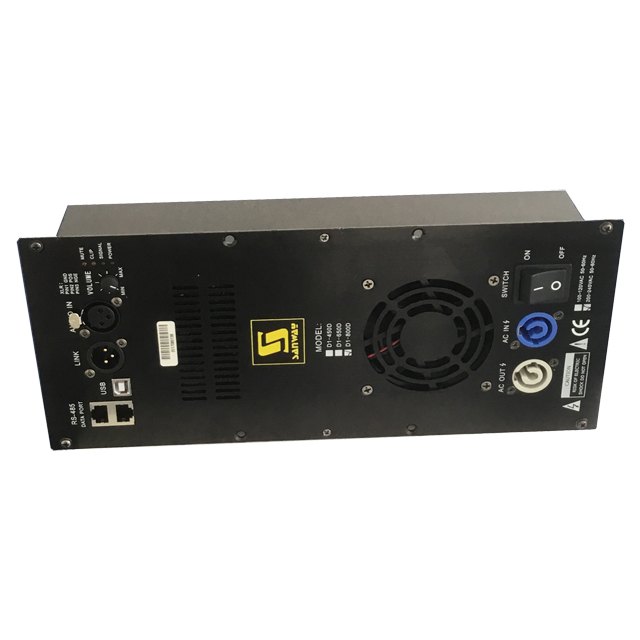

D1-800D Class D 800w 1 Channel Active Speaker Amplifier Module

1. Switch Mode Power Supply and Class-D Amplifier
2. Extremely Small Plate Chassis and Low Weight
3. Mounted Versatile DSP
4. Single Channel; 2 Channel and 3 Channel for Choice
5. Double RS485 Connectors for Remote Controlled Operation

Size:
Quantity:
  • D1-800D
  • Sanway
  • Dual 8 inch Line Array


Quick details


Item   D1-450D/D1S-450D D1-650D/D1S-650D D1-8 00D/D1S-800D
8Ω  Power 1×450W  1×650W 1×800W
4Ω  Power   1×500W  1×700W  1×850W

1>. Plate amplifier module with built-in DSP enable users to control the system via PC connected with USB or RS-485 interface.

2>. This single channel active amplifier module with DSP function allows the user to set up and modify the signal processing path, including MUTE,Polarity,Gain,Delay,Limiter,Mixer,EQ,XOver.

3>. D1-800D powered module is lightweight and easy for installation.

4>. This plate amplifier is perfect for full range speaker systems and low profile subwoofer.


We have two different size for the D1 series plate amplifier. The D1S series is the smaller size

D1S size



Specification

Item D1-800D
Frequency Response 20Hz-20KHz ±1dB
THD+N 1 KHz 1W 8Ω <0.1 %
Signal to Noise Ratio   1KHz >100dB
Channel Separation   1KHz >80dB
Cl ass D
Protection Short,DCP,OVP,UVP,OCP,OTP
Operating Voltage 90V-135V  / 180V- 265V
Input Sensitivity 0.77V
Input  Impedance 20KΩ
DSP Fuction

MUTE,Polarity,Gain,Delay,

Limiter,Mixer,EQ,XOver

DSP Control USB and RS-485
Dimensions(W×H×D) 332×142×70mm
Packing Dimension 370×160×100mm
Net Weight(kg) 1.7
Gross Weight( kg) 2.7

D1-800D.png D1 series DSP plate amplifier.png
QQ截图20160112114212

Feedback from Customers:

D1-800D plate amplifier feedback from AgentinaD1-650W D1-800W amplifier module feedback
