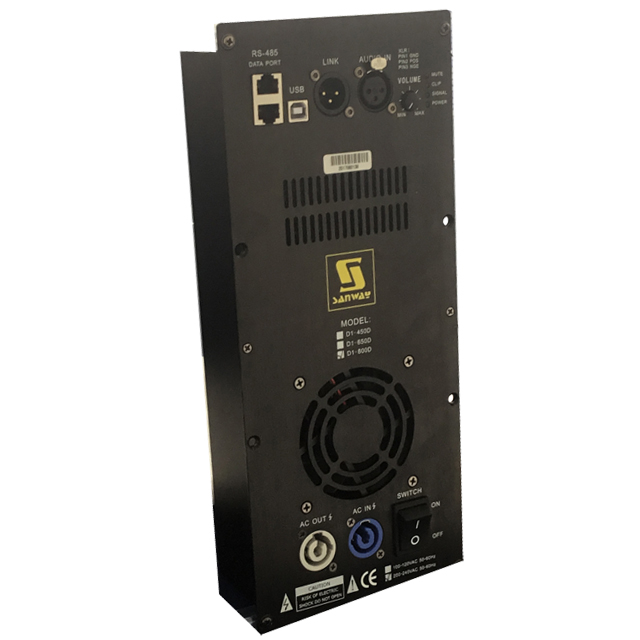

D1-650D Class D Digital Amplifier Module for Speaker

1. Switch Mode Power Supply and Class-D Amplifier
2. Extremely Small Plate Chassis and Low Weight
3. Mounted Versatile DSP
4. Single Channel; 2 Channel and 3 Channel for Choice
5. Double RS485 Connectors for Remote Controlled Operation

Size:
Quantity:
  • D1-650D
  • Sanway


Overview


D1 Series Class D Power Amplifier Module have three models :
D1-450D, D1-650D, D1-800D.
It is single channel DSP version and without DSP are selectable..
Compact installation dimension for any cabinet boxes


Specification


Item  D1-650D/D1S-650D
8Ω  Power 1×650W
4Ω  Power  1×700W
Frequency Response 20Hz-20KHz ±1dB
THD+N 1 KHz 1W 8Ω <0.1 %
Signal to Noise Ratio   1KHz >100dB
Channel Separation   1KHz >80dB
Cl ass D
Protection Short,DCP,OVP,UVP,OCP,OTP
Operating Voltage 90V-135V  / 180V- 265V
Input Sensitivity 0.7 7V
Input  Impedance 20KΩ
Fuction HI-PASS,VOLUME
Dimensions(W×H×D) 332×142×70mm
Packing Dimension 370×160×100mm
Net Weight(kg) 1.7
Gross Weight( kg) 2.7


We have two different size for the D1 series plate amplifier. The D1S series is the smaller size

D1S size

 D1-650D.png D1 series DSP plate amplifier.png
