5XT 100 Watt 2 Way Passive 5 Inch Coaxial Small Speaker

1x5 “ neodymium LF speaker driver, 1” neodymium HF speaker drivers, inside crossover.
First grade Russian birch plywood provide better clarity and tone
Lightweight and compact.
Availability:
Quantity:
  • 5XT

  • Sanway

  • NON

Overview:


5XT 2 way passive speaker is an ultra-compact coaxial system designed for short throw sound enhancement applications, like restaurants, bar, front fill reinforcement.



To make the minimal visual impact, 5XT passive speaker consists of 1” high frequency compres

sion driver, and the 5” lower frequency speaker driver is installed in the bass reflex cabinet. The operating frequency of 5XT is 95 Hz to 20 kHz. The Coaxial speaker driver configuration produces 110° ax-symmetric direct output with smooth tone response and no secondary lobe in the entire frequency range.



5XT speaker cabinet is made of first grade birch plywood ensure maximum sound insulation and mechanical integrity.  With its features of light weight 3.5kg and super compact size, it can be integrated in any application easily.



The 5XT small speaker can be mounted with a 3/8-inch microphone stand insert. Other deployments, such as wall-mounted, ceiling-mounted. With a variety of settings options and brackets in different directions, you can fly quickly or easily.



Features:


1x5 “ neodymium LF speaker driver, 1” neodymium HF speaker drivers, inside crossover.

First grade Russian birch plywood provide better clarity and tone

Lightweight and compact.



Specification:


100 watt    2 way passive 5 inch coaxial small speaker



Usable     bandwidth (-10 dB)

95 Hz – 20 kHz

Maximum     SPL

121   dB

Nominal     directivity



110° axisymmetric

Transducers

LF:   1 ×   5’’ Ferrite cone driver

HF:   1 ×   1’’ diaphragm neodymium compression driver

Acoustical     load

LF:     Bass-reflex

Power(RMS)

100W

Nominal     impedance

8  Ω

Connectors

IN:1   ×   4-point speakON

LINK:   1   × 4-point speakON

Rigging     and handling


1 × 3/8” insert for microphone stand

2 × M6 inserts for ETR5 U-bracket


Weight     (net)

3.5     kg/7.7 lb

Cabinet

First     grade Russian birch plywood

Front

Steel grill with anti-corrosion coating

Finish

Dark     grey brown Pantone 426 C

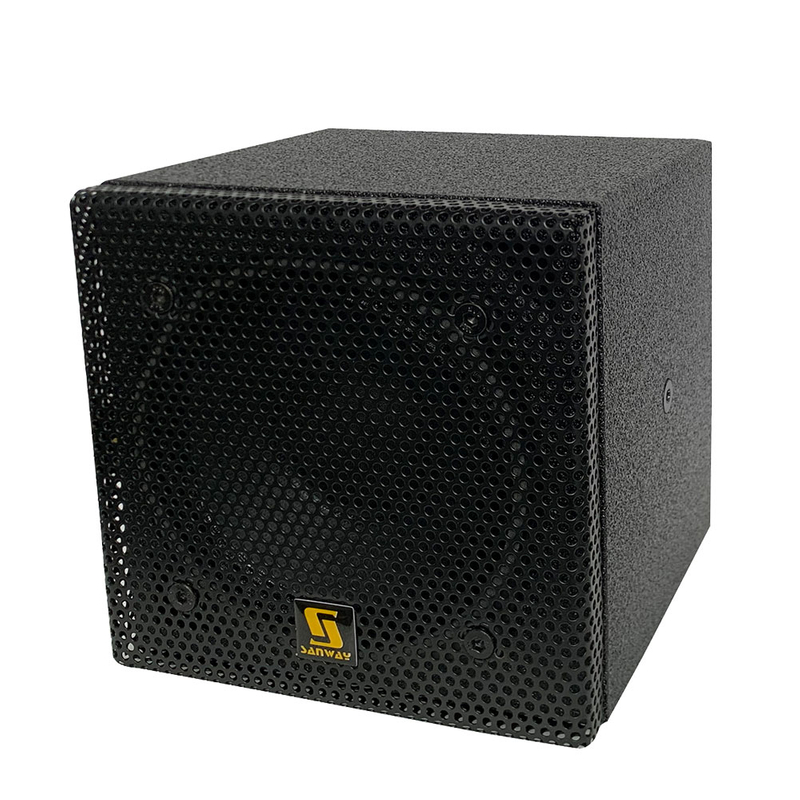

 5XT single 5 inch small speaker

5XT dimension
