L-8006
Sanway
powered, passive
Description

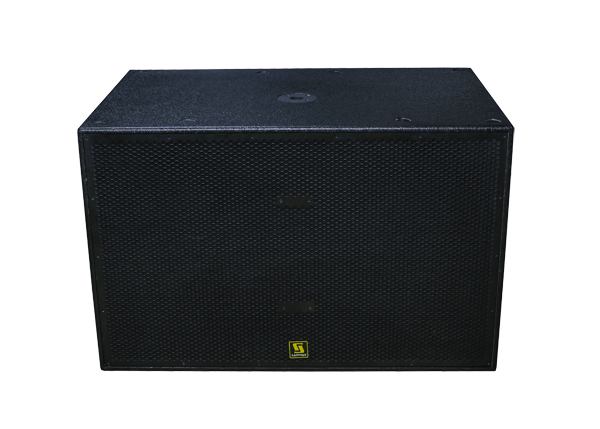

The L-8006 is the largest and most powerful sub woofer in the professional series. Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. It is a direct radiating, high output, large-format sub woofer system proven in complementing high efficiency, full-range loudspeakers. Driver mounting maximizes cone area and minimizes frontal area, providing acoustical performance and physical configuration well suited for creating large subwoofer arrays. L-8006 has been designed to extract the greatest efficiency from every part of the system, resulting in an effortless reproduction of low frequency transient response. As a self-powered system, the transducers, amplification and DSP control electronics of the L-8006 are designed to optimize performance and maximize its power.
Features
With active amplifier module D3-2CH: 2 x 1500W
• 5000 Watt Peak power - 2500 Watt RMS
• 141 dB max SPL
• 30 Hz - 120 kHz frequency response
• DSP controlled Input section with selectable presets • Delay control
• Integrated mechanics for multiple configuration with HDL 20-A
• Baltic birch tour grade cabinet
Application
• Live sound
• Rental
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• Corporate A/V professionals and sound system hire companies
Specification
Model | L-8006 Dual 18” Passive or Powered Subwoofer |
Frequency Response (±3 dB) | 30 Hz - 120 Hz |
Sensitivity (1w/1m | 99 dB SPL |
Long-term SPL | 132 dB |
Maximum SPL | 141 dB |
Nominal Impedance | 4 ohms |
Power rated | 2500 watts |
Peak Power handling | 5000 watts |
Nominal Dispersion | N/A |
Powered Version | Two SanwayCustomized DSP ActiveModule D2L-SUB8 |
Dimensions (H x W x D) | 709 mm x 1109mm x 700 mm |
Enclosure Material | 18mm plywood |
Surface Finished | black catalyzed polyurethane paint |
Grille | 1.5mm black perforated steel framed |
Net weight | 90 kg / 97 kg Powered Version |
Low Frequency Driver | 2×18 inch, 4 inch voice coil |
Input Connectors | Neutrik NL4MPX2 |
Description
The L-8006 is the largest and most powerful sub woofer in the professional series. Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. It is a direct radiating, high output, large-format sub woofer system proven in complementing high efficiency, full-range loudspeakers. Driver mounting maximizes cone area and minimizes frontal area, providing acoustical performance and physical configuration well suited for creating large subwoofer arrays. L-8006 has been designed to extract the greatest efficiency from every part of the system, resulting in an effortless reproduction of low frequency transient response. As a self-powered system, the transducers, amplification and DSP control electronics of the L-8006 are designed to optimize performance and maximize its power.
Features
With active amplifier module D3-2CH: 2 x 1500W
• 5000 Watt Peak power - 2500 Watt RMS
• 141 dB max SPL
• 30 Hz - 120 kHz frequency response
• DSP controlled Input section with selectable presets • Delay control
• Integrated mechanics for multiple configuration with HDL 20-A
• Baltic birch tour grade cabinet
Application
• Live sound
• Rental
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• Corporate A/V professionals and sound system hire companies
Specification
Model | L-8006 Dual 18” Passive or Powered Subwoofer |
Frequency Response (±3 dB) | 30 Hz - 120 Hz |
Sensitivity (1w/1m | 99 dB SPL |
Long-term SPL | 132 dB |
Maximum SPL | 141 dB |
Nominal Impedance | 4 ohms |
Power rated | 2500 watts |
Peak Power handling | 5000 watts |
Nominal Dispersion | N/A |
Powered Version | Two SanwayCustomized DSP ActiveModule D2L-SUB8 |
Dimensions (H x W x D) | 709 mm x 1109mm x 700 mm |
Enclosure Material | 18mm plywood |
Surface Finished | black catalyzed polyurethane paint |
Grille | 1.5mm black perforated steel framed |
Net weight | 90 kg / 97 kg Powered Version |
Low Frequency Driver | 2×18 inch, 4 inch voice coil |
Input Connectors | Neutrik NL4MPX2 |
