L-8018
Sanway
Description

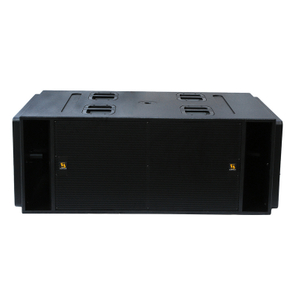

The L-8018 high-efficiency subwoofer is the ideal low-frequency extension to complement installed systems. The low-frequency transducer is a hypervented vented, high excursion precision 18” woofer with a 4” inside/outside voice coil to minimize power compression and extend the life of the product. The system is able to produce a Max SPL of 137 dB and handles 1500 Watts AES. Using bass-reflex loading the subwoofer design ensures an efficient acoustic response down to 30 Hz. This new woofer design is the result of the latest refinements in experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range. The compact plywood enclosure is painted with black, heavy duty, textured epoxy. The front is protected by a strong powder coated metal grille. The cabinet features two Neutrik connectors in a recessed input plate.
Features
18” high-efficiency 4” voice-coil woofer with Inside/Outside Coil Technology
• 137 dB maximum sound pressure level
• Response down to 30 Hz
• Rectangular box enclosure with protective metal grille
• 35 mm standard pole mount in top section of cabinet
• Compact plywood cabinet painted with black, heavy duty, textured epoxy
• Integrated hand carry points
Application
Low Frequency Enhancement
• Music Enhancement
• Special Effects Reinforcement
• Entertainment Systems
• Live Music Reinforcement
• Mid to Large Club Sound System
Specification
Frequency Response (±3 dB) | 30 Hz - 200 Hz |
Sensitivity (1w/1m | 100 dB SPL |
Maximum SPL | 137 dB |
Nominal Impedance | 8 ohms |
Peak Power handling | 1500 watts |
Nominal Dispersion | N/A |
Dimensions (H x W x D) | 630 mm x 530mm x 700 mm |
Enclosure Material | 18mm plywood |
Surface Finished | black catalyzed polyurethane paint |
Grille | 1.5mm black perforated steel framed |
Net weight | 43kg |
Low Frequency Driver | 1×18 inch, 4 inch voice coil |
Input Connectors | Neutrik NL4MPX2 |
