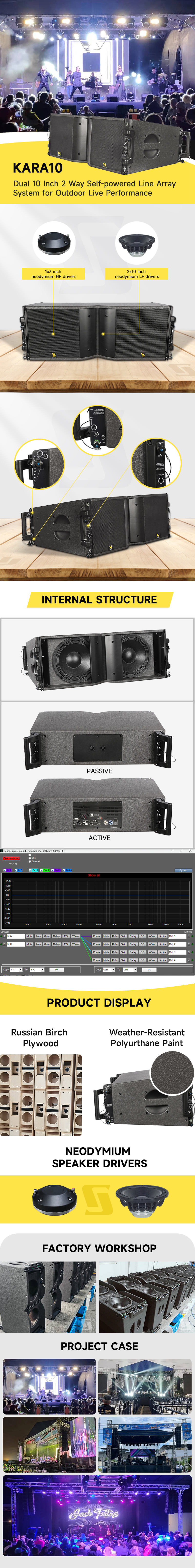

KARA10
powered, passive
Overview:
The high-end compact KARA10 line array speakers feature 2x10" neodymium woofers and 3” neodymium tweeters.
The two powerful 10" woofers of the KARA10 line array system deliver over 6 dB of mid-bass performance with less distortion than typical dual 8" systems.
The 3” compression driver is designed to deliver excellent treble, especially for speech clarity and precise music reproduction. The low-frequency excursion of approximately 1 kHz ensures a smooth and accurate mid-range response even in the sensitive transient range.
The SB18B Audio Subwoofer is a compact suspended subwoofer for use with the KARA10 dual 10 inch line array system.
KARA10 and SB18B can be made as active line array speaker system, also can be made as passive line array speaker system. They ideal for outdoor and indoor live performance.
Key Features:
KARA10 active line array: 1x3 inch; 2x10 inch
SB18B active subwoofer: 1x18 inch
Neodymium speaker drivers
First grade birch plywood
Waterproof polyurea paint
Built-in DSP plate amplifier
Specification:
KARA10 Dual 10" Active Line Array Speaker System
Drivers | 1 × 3“ HF |
Frequency range | 63 Hz - 18000 Hz* |
Power capacity program / peak | LF:800W/ 1600W; HF: 300W/ 600W |
Impedance | LF:8 Ω; HF:8 Ω |
Coverage | Horizontal 110° symmetricVertical: Dependent upon number of elements and line source curvature |
Sensitivity 1 W / 1 m | 103 dB |
SPLmax / 1 m | 140 dB |
Connection | speakON™ NL4 1± |
Dimensions (H × W × D) | 310×852×445mm |
Weight | 32kg |
Finish | polyurea coating |
SB18B Single 18 inch subwoofer
Low frequency limit (-10dB) | 32 Hz |
Maximum SPL1 | 138 dB |
RMS handling capacity | 700W |
Components LF: 1 x18" neodymium woofer | |
Nominal impedance: 8 ohms | |
Dimension (W x H/h x D) | 750 x 540 x 707mm 29.5 x 21.3 x 27.8 in |
Weight (net) | 52 kg |
Connectors | 2 x 4 Neutrik |
Material | birch plywood |
