Thanks to every fellows' hardwork , another 40HQ container has been successfully loaded to Indonesia yesterday. Over two hundred units line array speakers filled up this container, including dozens of W8LC , which is professional 12 inch three-way line array speaker.

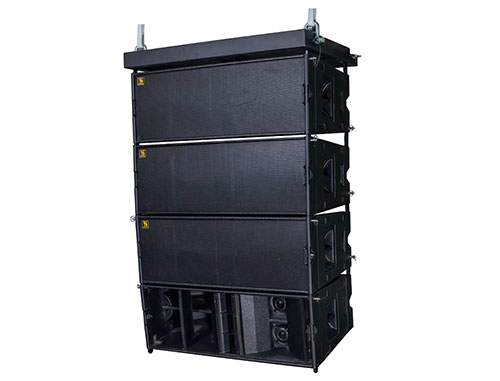

The Sanway Audio W8LC is designed to bring superb next-generation line array performance to concert, theater and commercial events. It meets the need for a high power, high bass impact system that is versatile and scalable for a very wide range of applications in the live sound, corporate and fixed installation fields. W8LC grids allow systems to be flown or ground stacked as required.
Specifications
Frequency Response (±3 dB)
60 Hz - 18 kHz
Sensitivity (1w/1m)
LF 103 dB / MF 106 dB / HF 109 dB
Maximum SPL
LF 135 dB / MF 135 dB / HF 135 dB
Nominal Impedance
LF: 8 ohms MF: 8ohms HF: 8 ohms
Power rated(rms)
LF: 400 watt MF: 200 watt HF: 100 watt
Peak Power handling
LF: 1600 watt MF: 800 watt HF:400 watt
Nominal Dispersion
90ºH optional×7.5ºV
Dimensions (H x W x D)
367 mm x 1000 mm x 550 mm
Enclosure Material
18 mm plywood
Surface Finished
Textured grey wear-resistant paint
Grille
heavy grey perforated steel framed
Net weight
58kg
Low Frequency Driver
12" high effeciency Neodymium magnet driver
Mid Frequency Driver
2×6.5" high effeciency Neodymium magnet driver
High Frequency Driver
3×1" effeciency Neodymium magnet driver
Input Connectors
Speakon NL8×2
W8LC
Frequency Response (±3 dB)
60 Hz - 18 kHz
Sensitivity (1w/1m)
LF 103 dB / MF 106 dB / HF 109 dB
Maximum SPL
LF 135 dB / MF 135 dB / HF 135 dB
Nominal Impedance
LF: 8 ohms MF: 8ohms HF: 8 ohms
Power rated(rms)
LF: 400 watt MF: 200 watt HF: 100 watt
Peak Power handling
LF: 1600 watt MF: 800 watt HF:400 watt
Nominal Dispersion
90ºH optional×7.5ºV
Dimensions (H x W x D)
367 mm x 1000 mm x 550 mm
Enclosure Material
18 mm plywood
Surface Finished
Textured grey wear-resistant paint
Grille
heavy grey perforated steel framed
Net weight
58kg
Low Frequency Driver
12" high effeciency Neodymium magnet driver
Mid Frequency Driver
2×6.5" high effeciency Neodymium magnet driver
High Frequency Driver
3×1" effeciency Neodymium magnet driver
Input Connectors
Speakon NL8×2
