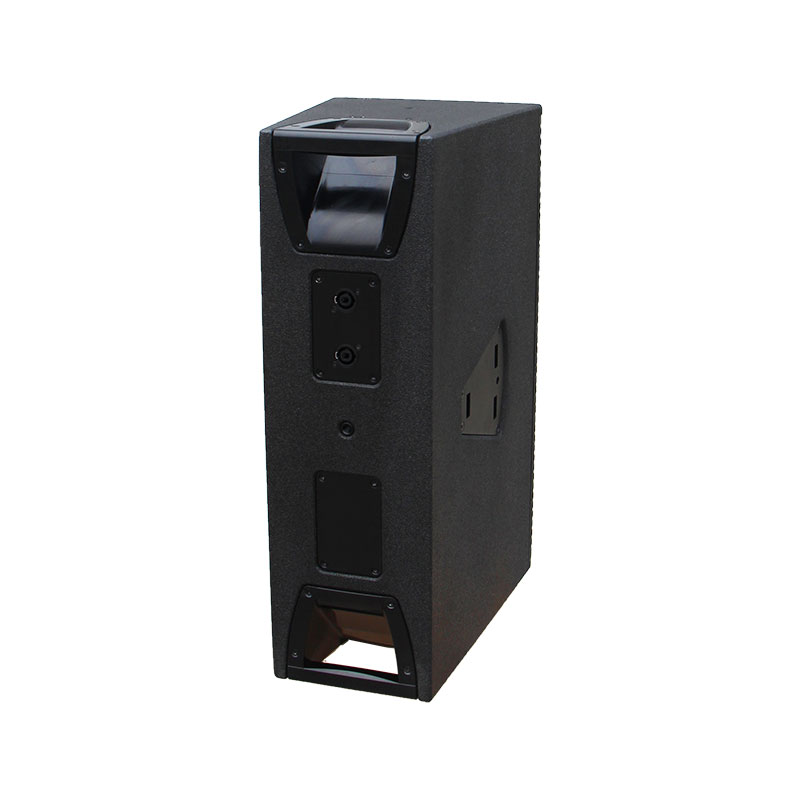

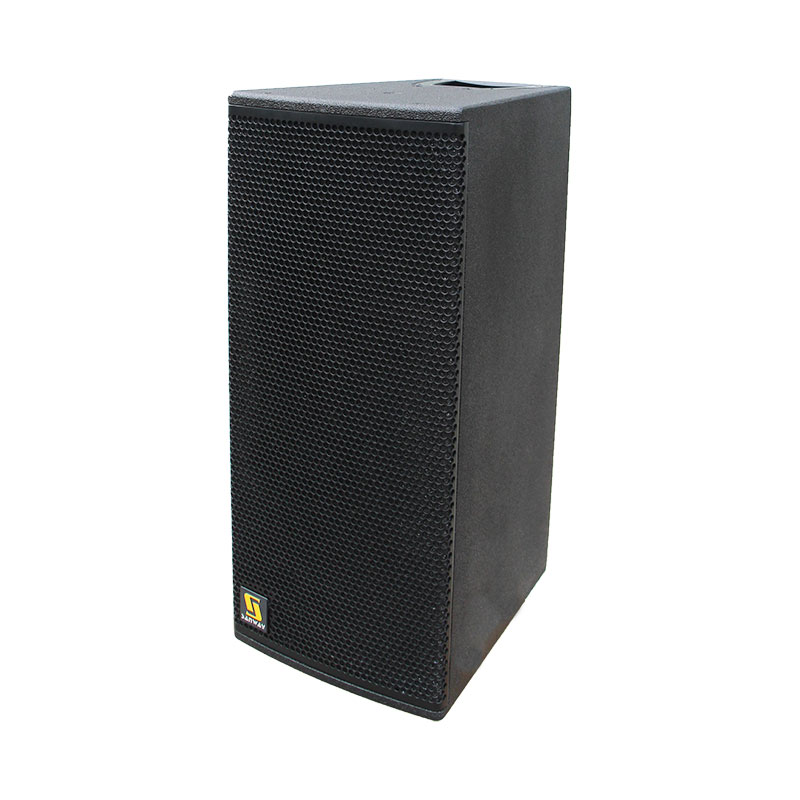

Y10P Dual 8 Inch Passive Pa Loudspeaker System for Concert

2x8"; 1x3" neodymium speaker drivers
Lightweight and compact enclosure
Rugged exterior Polyurea paint finish
First grade Russian plywood
Availability:
Quantity:
  • Y10P
  • Sanway
  • NON

Overview:



Y10P passive loudspeaker equipping 2x8” neodymium LF speaker driver and a 1.4” exit neodymium HF speaker driver rotatable horn offering a nominal dispersion (hxv) 110°x40°.

In the pa loudspeaker, two 8” woofer are installed in  a dipolar arrangement offering  exceptional vertical dispersion control even at lower frequencies.

Specially designed ports with optimized traffic characteristics provide significantly improved, effective low-frequency re-production.



The compact loudspeaker enclosure is made of first grade Russian birch plywood with weather resistant Polyurea paint finish that  ensure maximum sound insulation and mechanical integrity; also allow speaker can be used in villainous weather, high temperature environment.



Features:


High sensitivity neodymium speaker drivers provide high efficient performance.

Lightweight and compact enclosure is made of first grade Russian birch plywood.

Rugged exterior Polyurea paint finish

Flexible rigging system



Application:


Theatre and Opera

Touring and Concerts

Houses of worship

Musical productions

Nightclubs and Bars



Specification:


Nominal   impedance

8 Ω

Power handling   capacity (RMS/peak 10ms)

400/1600 W

Nominal   dispersion angle (hxv)

110°x40°

Splay angle   settings

0° - 14° (1°   increment)

Components



2 x 8"   driver with neodymium magnet

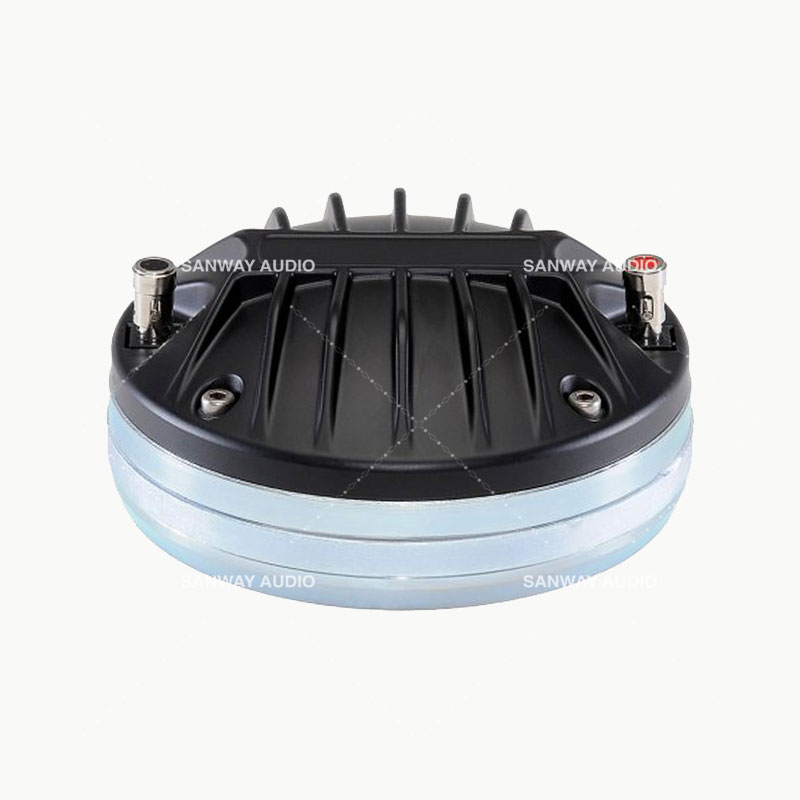

    1.4" exit compression driver

Passive crossover   network

Max SPL

136dB

Connections

 2 x NL4

Dimensions (H   x W x D)

580 x 257 x   341 mm

Weight

18 kg
 40 lb



Dimension:

Y10P-dimension
