X12
Single 12 inch Line Array
Overview：
X12 is a multi-functional coaxial monitor speaker perfect for various short throw sound reinforcement. It operates in the range of 50Hz to 20kHz.
X12 is equipped with a 12inch low-frequency speaker driver, and on the basis of coaxial technology, is equipped with a 3inch compression driver. The internal automatic frequency divider network uses a custom filter.
Because of the coaxial speaker and elliptical acoustic design, the X12 can exhibit a 90°x 60° direction with a smooth tone response over the entire frequency range. With the design of the X12 audio monitor speaker makes it perfectly suitable for various short-range projection sound reinforcement applications.

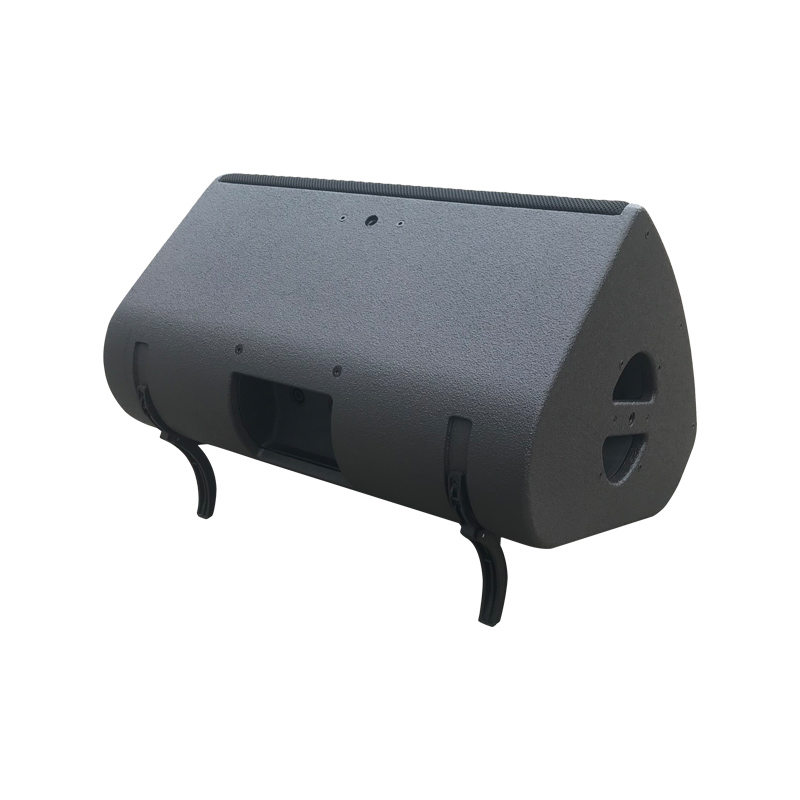

As a passive floor stage monitor, the X12 can be set to vertical 35°, or due to its built-in riser, the angle can be adjusted to 55°. The X12 pa monitor speaker cabinet is made of birch plywood, to made the box lightweight and beautiful and elegant, and more importantly, it can be perfectly integrated into various applications. In addition, its comfortable handle makes it easy to carry. The X12 can be mounted on a pillar using an integrated socket, or it can be hung from multiple angles with its own hanging accessories.
Feature:
12 inch+3 inch coaxial neodymium speaker driver
First grade Russian birch plywood
Waterproof paint
Lightweight and compact
Specification:
Description | 2-way passive coaxial enclosure: 12'' LF + 3'' HF diaphragm |
Usable bandwidth | (-10 dB) 59 Hz- 20 kHz ([X12]) |
Maximum SPL1 | 136 dB([X12]) |
Nominal directivity | vertical: symmetric horizontal: symmetric |
Monitoring angle | without risers: 35° with risers: 55° |
Transducers
| LF: 1 × 12"cone driver HF: 1 × 3"diaphragm compression driver, neodymium Acoustical load bass-reflex, L-Vents, ellipsoidal waveguide |
Nominal impedance | 8 Ω |
Power | RMS 450W |
Connectors | IN: 1 × 4-point speakON LINK: 1 × 4-point speakON |
Rigging and handling | 2 × handles DIN580-compatible M8 threaded insert 4 M10 threaded inserts 1 × 35 mm pole socket |
Weight (net) | 20 kg/ 44.1 lb |
Cabinet | First grade Russian birch plywood |
Front | steel with anti-corrosion coating acoustically neutral 3D fabric |
Finish dark | grey brown Pantone 426C |
Test video:
