WPL
Product Description:

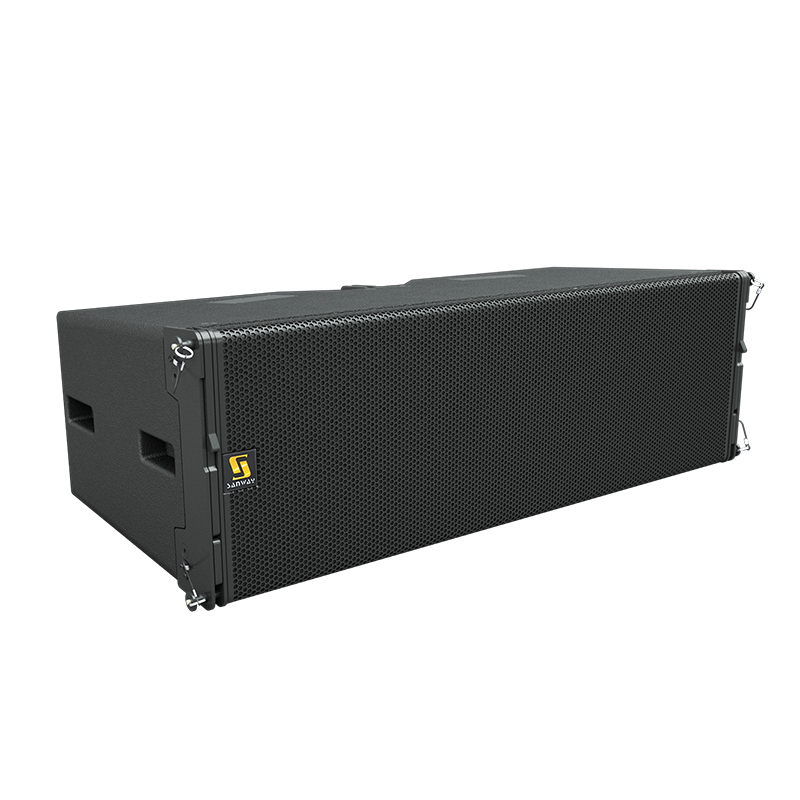

The WPL large-format line array is a high-performance passive 3-way sound system crafted for live touring, concert halls, and fixed installations requiring premium sound reinforcement. Designed to deliver powerful output, extended coverage, and scalable control, this system is ideal for arenas, stadiums, and outdoor events.
The WPL system features a dual 12-inch low-frequency configuration, quad 6.5-inch midrange transducers, and triple 1-inch HF compression drivers for unmatched clarity and throw distance. Its advanced wavefront design ensures coherent sound dispersion with consistent SPL across the audience area.
Whether deployed as a touring rig or a permanent venue install, the WPL offers professionals a future-proof solution for delivering impactful, intelligible sound on a grand scale.
Key Features:
Large-format, passive 3-way line array design
Dual 12” LF drivers for extended low-end punch
Four 6.5” midrange drivers ensure vocal clarity
Three 1” HF drivers provide crisp, defined highs
Optimized wavefront technology for precise coverage
Scalable resolution for adaptable venue configurations
Ideal for stadiums, arenas, festivals, and live events
Perfect for:
Music festivals and outdoor events
Touring sound systems
Stadium and arena installations
Houses of worship with large congregations
Theatres and performing arts centers
Specifications:
Type | Three-way, bi-amp line array speaker |
Frequency Response | 52Hz-18kHz ±3dB |
Drivers | LF: 2×12" (300mm) voice coil MF: 2×6.5" (165mm)coil |
Maximum SPL | LF: 139dB |
Nominal Impedance | LF: 8Ω |
Dispersion | Horizontal: 90° (-6dB), 120° (-10dB) |
Crossover | 320Hz (active), 4kHz (passive) |
Enclosure | Trapezoid, 3.75° angle |
Dimensions (W×H×D) | 1136×371×526mm |
Weight | 64kg (141lbs) |
Connectors | 2×NL4 |
Input Connections | LF: 1+/1- |
