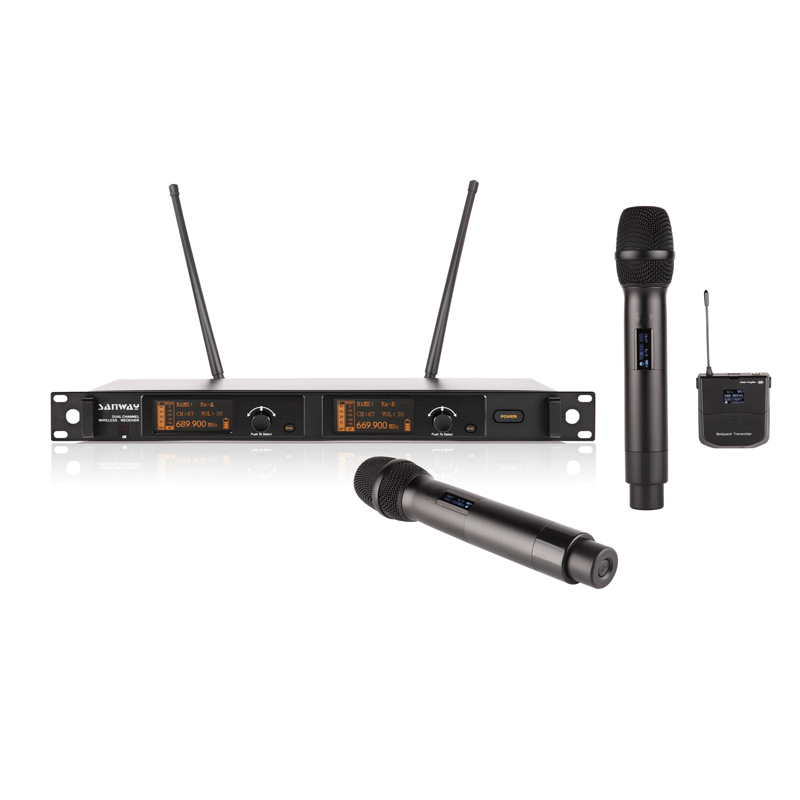

Features：
Standard performance class design
Rugged metal chassis with soft-touch controls.
True diversity provides the most effective elimination of dropouts.
Automatic Frequency Selection provides a straight shot to a clear channel.
Transmitter Sync.
Transmitter design with mute button
Professional technology to eliminate handling noise.
The receiver accurately displays the transmitter battery
600 selectable frequencies across 35MHz bandwidth.
OLED display screen delivers a bright, clear viewing in day/night environments.
Design for use either on tour or in fixed installations, offers the highest levels of reliability, audio and transmission quality.
Recommended matching MC3500 antenna system better
Specification
Channels：Dual Channel
Frequency Stability：±0.005%, Phase Lock Loop frequency control
Frequency Range：603-702MHz/720-855MHZ
Preset Channels：32 preset channels
Operating Range：100M typical ( in open space)
Oscillation：PLL synthesized
Sensitivity：6dBμV, S/N>60dB at 25 deviation
Band Width：35MHz
Max. Deviation Range：±45KHz
S/N：＞105dB
T.H.D.：＜0.7% @ 1KHz
Frequency response：45Hz～18KHz±1dB
Squelch：“Pilo Tone & Noise Lock” dual-squelch circuit
Power Supply：100-240V AC50/60 Hz, 10W
Output Connector：XLR balanced & 6.3φ phone jack unbalanced
Handheld Microphone
Frequency Range：603-702MHz/720-855MHZ
Oscillation：PLL synthesized
Harmonic radiation：＜-65dBm
Bandwidth：120MHz
Max. Deviation Range：±45KHz
Microphone Element：Cardioid Dynamic
RF Power Output：10mW
Battery：AA* 2
Current Consumption：90mA, typical
Battery Current / Life：Approximately 10hours
Bodypack Transmitter
Frequency Range：603-702 MHz/720-855MHZ
Oscillation：PLL synthesized
Harmonic radiation：＜-65dBm
Bandwidth：120MHz
Max. Deviation Range：±45KHz
Input Connector：4-pin mini-XLR connector
RF Power Output：10mW
Battery：AAX 1
Current Consumption：120mA, typical
Battery Current / Life：Approximately 6 hours
