HT-14K
Sanway
NON
Overview:

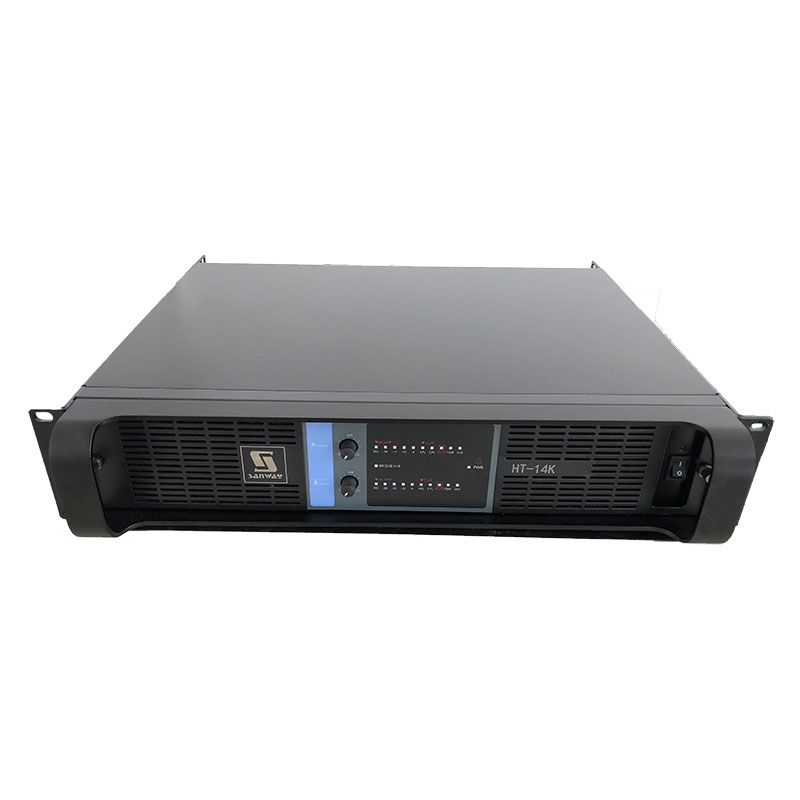

HT-14K power bass amplifier is designed for use with high wattage passive subwoofers in the home audio sound system.
HT-14K subwoofer power amplifier offers powerful, quiet and reliable performance.
To maximize margin in any application, the FP HT-14K offers adjustable input gain and Sanway's proprietary voltage peak limiter (VPL). The VPL can be adjusted on each channel to optimize output for any load, from a single large subwoofer to a range of HF compression drivers.
To stay cool in extreme demand, the HT-14K home audio amplifier is using thousands of 100% pure copper heatseids to multiply the rapid heat dissipation of exposed radiator surfaces. In addition, all output devices are installed perpendicular to the airflow for uniform cooling.
Comprehensive warning and protection on the HT-14K protects the load on the output circuit and connection, while also extending the life of the amplifier and minimizing the chance of service interruption, whether due to wiring errors, improper use or extreme ambient temperatures, the FP 14000 provides clear indication of any problem.
Features:
1. Reliable sound quality
2. Class TD amplifier
3. Regulated Switch Mode Power Supply
4. Efficient cooling system, 100% pure copper heat sink
5. Adjustable parameters
6. Neutrik speakON and XLR input
8. Heavy-duty binding posts
Specification:
| ITEM | HT-14K | |||
| Output Power | 20-20kHz, 1W with 1 khz | |||
| 8ΩStereo Power(RMS) | 2350WX2 | |||
| 4ΩStereo Power(RMS) | 4400WX2 | |||
| 2ΩStereo Power(RMS) | 7000WX2 | |||
| 8ΩBridged Power(RMS) | 8800W | |||
| 4ΩBridged Power(RMS) | 14000W | |||
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz | |||
| THD 20 Hz - 20 kHz for 1 W | <0.1% | |||
| Signal-to-Noise Ratio | >112 dBA | |||
| Channel separation (Crosstalk) at 1 kHz | >70 dB | |||
| Input Connectors (per channel) | 3-pin XLR, electronically balanced | |||
| Output Connectors (per channel) | Binding Posts 2-pole and Neutrik SpeakON | |||
| Class | TD | |||
| TourClass Protection | AutoRamp,short cricuit, DC voltage, turn-on/off transient,current nrush | |||
| Operating voltage | 220V Version: 130-265 V / 110V Version: 65-135 V selectable | |||
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | |||
| Input impedance | 20 Kohms | |||
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB | |||
| Dimensions (W×H×D) | 483×88×396mm | |||
| Packing dimension | 580×180×560mm | |||
| Net weight(kg) | 13 | |||
| Gross weight(kg) | 18 | |||
