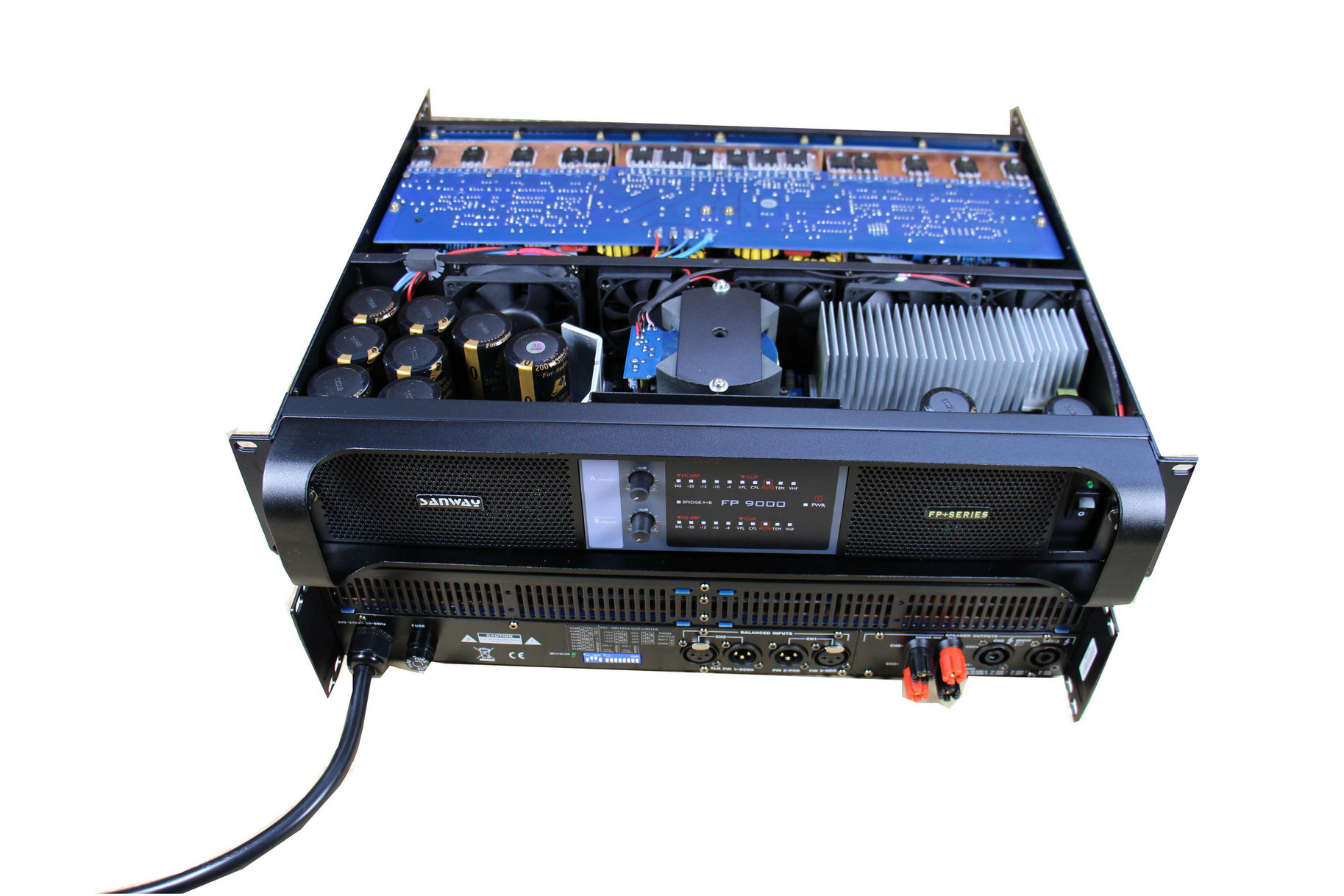

FP9000
Sanway
Dual 8 inch Line Array
Overview
FB series amplifier is uses new FM-wide regulator would be get more power technology.
It is a small size ,light weight and high efficiency ,high power and high reliability.
Both mobile and fixed installation performance are the best choice for you .
New designed with the stable performance and high quality.
Gorgeous appearance and full of modern taste, and walking at the forefront of famous brand of entertainment sound equipment.
Features
1. Unprecedented power density, 2 channel power amplifier
2. Reliable sound quality
3. Class TD amplifier
4. Regulated Switch Mode Power Supply
5. Efficient cooling system, 100% pure copper heat sink
6. Adjustable parameters
7. Neutrik input and link connectors
8. Heavy-duty binding posts
9. Comprehensive protection and warning
Specifications:
| ITEM | FP7000 | FP9000 | FP13000 | FP14000 |
| Output Power | 20-20kHz, 1W with 1 khz | |||
| 8ΩStereo Power(RMS) | 1450WX2 | 1600WX2 | 2350WX2 | 2350WX2 |
| 4ΩStereo Power(RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 4400WX2 |
| 2ΩStereo Power(RMS) | 3500WX2 | 4500WX2 | 6500WX2 | 7000WX2 |
| 8ΩBridged Power(RMS) | 5600W | 6000W | 8800W | 8800W |
| 4ΩBridged Power(RMS) | 7000W | 9000W | 13000W | 14000W |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz | |||
| THD 20 Hz - 20 kHz for 1 W | <0.1% | |||
| Signal-to-Noise Ratio | >112 dBA | |||
| Channel separation (Crosstalk) at 1 kHz | >70 dB | |||
| Input Connectors (per channel) | 3-pin XLR, electronically balanced | |||
| Output Connectors (per channel) | Binding Posts 2-pole | |||
| Class | TD | |||
| TourClass Protection | AutoRamp,short cricuit, DC voltage, turn-on/off transient,current nrush | |||
| Operating voltage | 220V Version: 130-265 V / 110V Version: 65-135 V selectable | |||
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | |||
| Input impedance | 20 Kohms | |||
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB | |||
| Dimensions (W×H×D) | 483×88×396mm | |||
| Packing dimension | 580×180×560mm | |||
| Net weight(kg) | 13 | |||
| Gross weight(kg) | 18 | |||
