Specification
Throat Diameter | 34mm |
Nominal Impedance | 8 ohms |
Nominal Power Handling | 100W |
Continuous Power Handling | 200W |
Sensitivity (1M/ 1W) | 108Db |
Frequency Range | 0.6-18KHz |
Voice Coil Diameter | 75mm |
Winding Material | Aluminum |
Former Material | Kapton |
Winding Depth | 2.8mm |
Magnetic Gap Depth | 3mm |
Fs | 600Hz |
Recommended crossover | 1.2KHz |
Inductance | 0.11mH |
Diaphragm Material | Titanium |
Flux Density | 1.8T |
Magnet Material | Neodymium |
Mounting and Shipping Information
Overall Diameter | 120mm |
Depth | 56mm |
Net Weight | 2.05kg |
Shipping Weight | 2.1kg |
Shipping Box | 132x132x75mm |

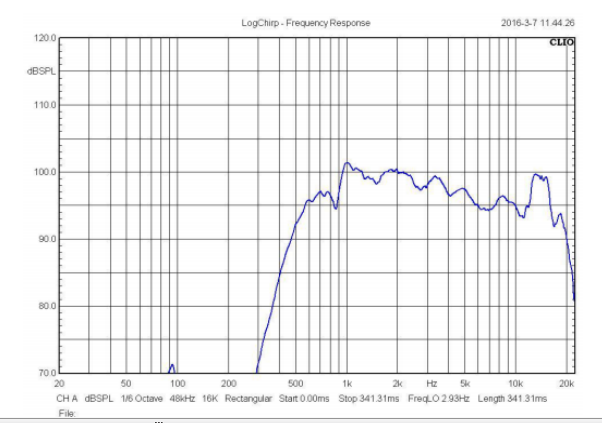

Frequency Response
