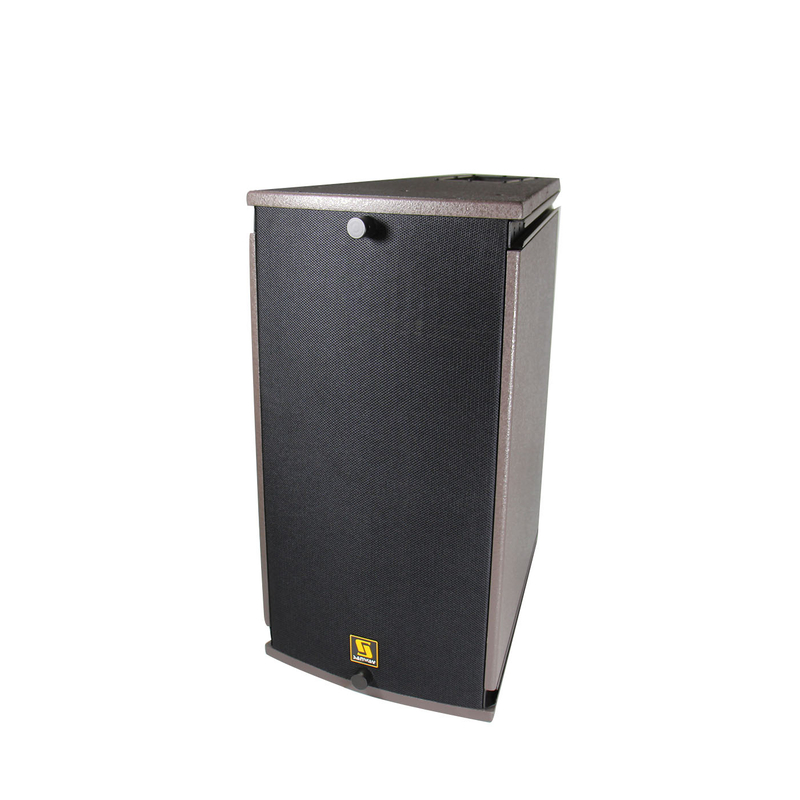

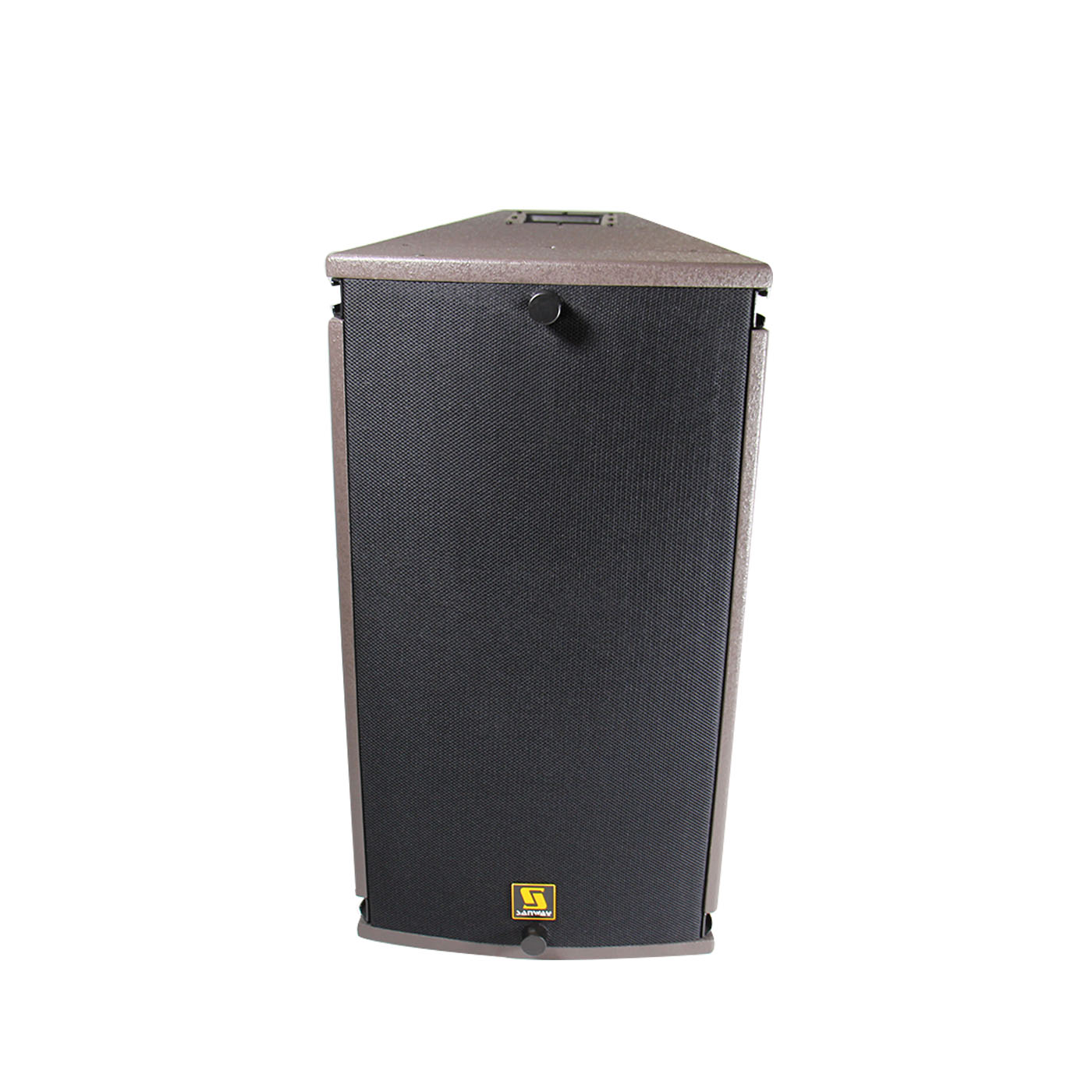

ARCS II 15 inch 2-way Line Array Speaker with Constant Curvature Design

1. Drivers: LF: 1 x 15", neodymium ; HF: 1 x 3" , neodymium
2. RMS : LF: 600 W ; HF: 100 W
3. Quick set-up and easy stacking and flying
4. Optimized for high SPL, LF impact and medium-throw applications

Two version:
Quantity:
  • ARCS II
  • Sanway
  • 1 x 15 inch
  • 1 x 3 inch
  • 8 Ω + 8 Ω
  • LF: 600 W ; HF: 100 W
  • 15mm plywood
  • 439 x 820 x 652 mm
  • 50kg


Description


The ARCS II constant curvature line source is optimized for medium throw applications. With high-efficiency drivers inside, ARCS II delivers very high SPL levels, native low-frequency performance and constant tonal balance over distance. ARCS II is simple to use, with its constant curvature design and is particularly recommended for indoor applications, medium-sized outdoor festivals or as a fill complement to large K systems.


Application

§  Neodymium Magnet drivers
§  Optimized for high SPL, LF impact and medium-throw applications
§  Adaptive and predictable directivity to suit many audience geometries
§  Constant tonal balance with distance
§  Clarity, intelligibility, impact and precision for live music
§  Quick set-up and easy stacking and flying

Specification



Model ARCS II
Drivers HF: 1x 3” ; LF: 1x 15”neodymium driver
Frequency Response (±3 dB) 50 Hz - 20 kHz
Sensitivity (1w/1m) 140dB SPL
Nominal Impedance 8 Ω + 8 Ω
Power rated(rms) LF: 600 W ; HF: 100 W
Peak Power handling LF: 1200 W ; HF: 200 W
Powered Version Sanway Customized Powered Module
Dimensions (Wx D x H) 439 x 820 x 652 mm
Enclosure Material 15mm plywood
Net weight 50kg / 53kg powered
 Input Connectors Neutrik NL4MPX2

dimension-02


4
