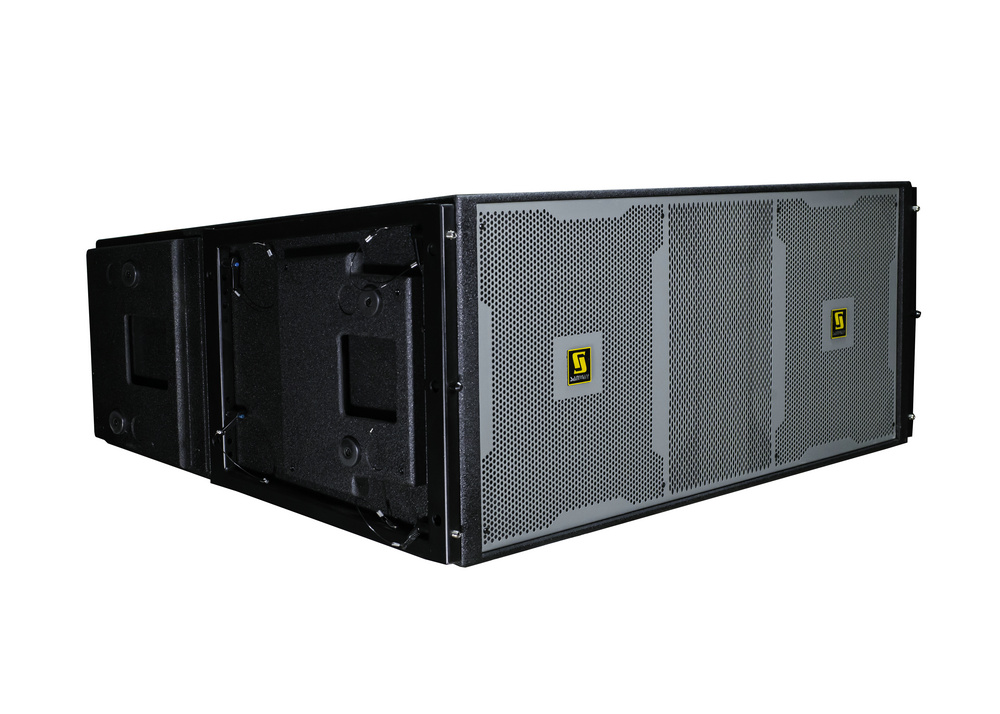

VT4880
Sanway
Dual 18 inch subwoofer
Description
The VT4880 is a rugged, lightweight, centrally-vented enclosure housing two 18" woofers. These advanced components, each fitted with dual voice coils, provide a high output power-to-weight ratio. The compact plywood enclosure features: foam backed perforated steel grille; speaker cones treated with weather-resistant compounds.
Protective end-caps safeguard the suspension hardware while allowing vertical stacking of multiple enclosures on end using integral end-mounted, scuff resistant pads, keyed for aligning surfaces and preventing slippage. Suspension systems are engineered for maximum support strength, and flexibility.
Key Feature
1. Advanced Technology Components: Neodymium Magnet, Dual Voice Coil, Direct Cool cone transducers.
2. Advanced Construction Techniques and Hybrid Materials provide exceptionally rigid, lightweight enclosure.
3. Rugged exterior finish; Weatherized components.
4. Integrated suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
Applications
The VT4880 Dual 18" Subwoofer Line Array Element is designed to deliver high quality sound reinforcement of sub-low frequencies for a wide variety of live music and A/V support applications. Typical uses include concert audio and multi-media presentations of all types.
1>. Arenas
2>. Convention Centers
3>. Large Ballrooms
4>. Stadiums
5>. Theaters Music
6>. Pavilions
7>. Auditoriums
Specifications
Model | VT4880 subwoofer |
Power Rating | 1800 W Continuous, 7200 W Peak |
Impedance | 4 ohms |
Frequency Range (-10 dB) | 26 Hz - 160 Hz |
Sensitivity | 98 dB |
Maximum SPL | 136 dB |
Impedance | 4 ohms |
Drivers | 2x18" neodymium woofer |
Dimensions (H x W x D) | 493 mm x 1229 mm x 860 mm |
Weight | 96 kg |
