FS-204
Sanway

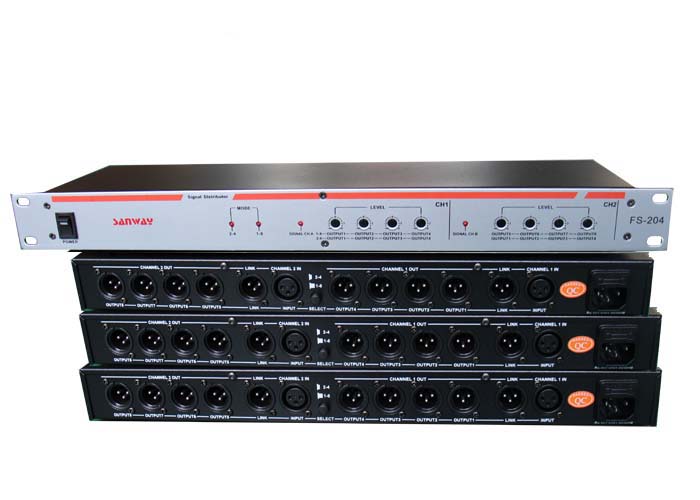

FS-204 2IN&8OUT 90V / 240V Stereo Sound Signal Distributor for loudspeaker
Features
1. AC Input Connector
2. CH.A Input Connector
3. CH.A (Stereo) 1-4 Outputs Or Mono1-4 Output
4. Operation Mode Switch
5. CH.B Input Connector
6. CH.B (Stereo) 1-4 Outputs Or Mono 5-8 Outputs
Specification
| Item | FS-204 |
S/N Rate | >103dB |
Frequency response | 20Hz -20KHz(+/-0.3dB) |
THD% | 0.03% |
Input mode | 1 Pair in/4 Pairs Out ; 1 Mono is /8 Mono Out |
The max increase of the output | +6dB/CH |
Dynamic range | 118dB |
Indicator | Power , Input , Mode |
Input impedance | Balance 20kΩ/ Unbalance 10KΩ |
Output Impedance | Balance 300Ω / Unbalance 150Ω |
Input Connector | XLR (1G,2+ ,3 -) |
Output Connector | XLR(1G,2+, 3-) |
Power | AC90V / 240V |
Packing Dimensions | 515mm X 245mm X 98mm |
Gross weight | 3.5Kg |
Function and use
1. Is a pair in/4 pait out and mono in /8mono out audio signal distribution splitter with the output level adjust in separate and with balance input / output.
2. When a signal must be distributed for more equipments, to use this signal and without reduce.
3. With the level adjusts in separate, you adjust the level output of each channel a little to mach the special drive need.
4. When met the power off outer, this unit can still distribute and output the signal to avoid “no sound ”, however, the output signal has not been magnified so the output signal wiil be attenated.
