VERA S15
Sanway
Dual 8 inch Line Array
powered passive
Description

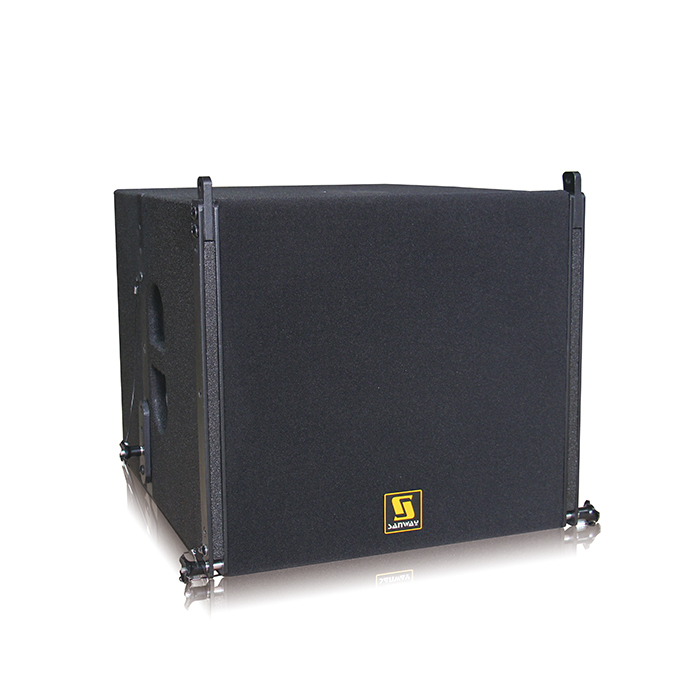

The VERA S15 is the most compact bass for the VR10 line array speaker. With one 15 inch high efficiency woofer inside, being just 44 cm tall, it is the best choice for applications with load restricted flying points and low rigging heights. The powered version is mounted one Sanway customized amplifier module D3 inside, which is 1800w+900w+900w at 4ohms load 3CH Class-D amplifier module with DSP function.
Feature
1. Compact cabinet size and quick setup and dismantle;
2. Coming with one 15 inch high efficiency driver inside;
3. Light weight Birch plywood Cabinet box;
4. Mounted one Sanway customized amplifier module D3 inside.
Specification
| Model | VERA S15 |
| Drivers | 1 x 15" |
| Frequency range | 40-1500 Hz |
| Power capacity/ peaker | 1200 / 2000 W |
| Impedance | 8 Ohms |
| Sensitivity 1 W/1M | 94dB |
| SPL max/1m/peak | 127dB |
| Connectors | NL4 2± (bi-amp) NL4 1± (passive) |
| Dimensions | 446 x 500 (565) x 560 mm |
| Weight | 29 kg |
