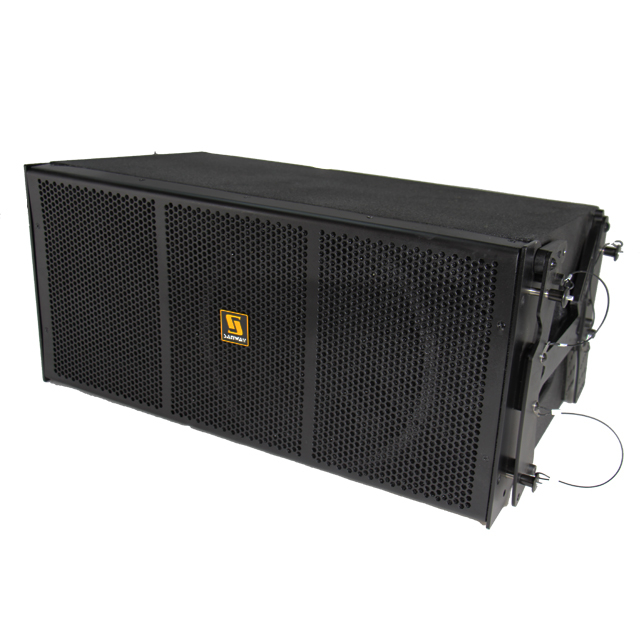

Aero 12A Single 12" Two Way Neodymium Driver Active Line Array

1. Easy plus-in installation and use.
2. Minimum cable wiring and low cost of maintenance.
3. Supply with secure steel ring for easy installation.
4. Built-in high efficient class-D amplifier

  • Aero 12A
  • Sanway
Two version:
Quantity:
  • 1 x 12 inch
  • 1 x 3 inch
  • 134 dB
  • plywood
  • 31.6x68.8x38.5cm
  • 35kg

Description

Aero12A is an active speaker with D2S-Two active amplifier module, which is 2 x 500W@8 ohms and 2 x 900W@8ohms.

It is a powered two-way, MID-high line array system with a single 12 neodymium LF driver and a 3 inch compersion HF driver. The captive rigging system integrated in the cabinet design line array sound system. There is a class d active module within the cabinet.

Features

1. Easy plus-in installation and use.

2. Minimum cable wiring and low cost of maintenance.

3. Supply with secure steel ring for easy installation.

4. Built-in high efficient class-D amplifier with better sound restoration and highest reliability.

Applications


 Versatile installation for conference room, auditorium, stadium, concert & bar.

1. Arenas

2. Convention Centers

3. Large Ballrooms

4. Stadiums

5. Portable PA, clubs, live theatre

6. Delay systems for large scale outdoor sound reinforcement

7. Auditoriums

Specifications



Nominal HF Amplifier Power

100 W

Nominal MF Amplifier Power

500 W

Frequency Range (-10 dB)

63 Hz-20 kHz

Rated Peak SPL at 1 m

134 dB

Horizontal Coverage (-6 dB)

90º Nominal

Vertical Coverage

Splay Dependent

Color/Finish

Black Paint

Connectors

2XNL-4

LF Driver

1x12inch Neodymium Woofer

HF driver

1x3inch Neodymium Compress Driver

Dimensions (H x W x D)

31.6 x 68.8 x 38.5 cm
12.4 x 27 x 15.2 in

Weight

27 kg (59.4 lb)

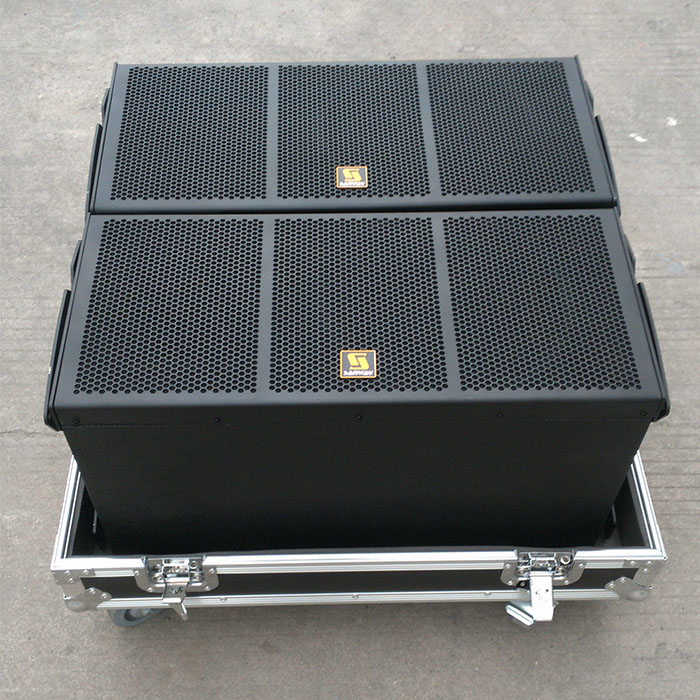

Aero 12A in flight case
