Sanway Pa Karaoke System

Name: Sanway Pa Karaoke System
Brand: Sanway
Rating: 5.0 (7 reviews)

K-600 Double Channel UHF Wireless Microphone
MK-4500 2x350W Double Channel Karaoke Power Amplifier
MK-12 Single 12” Passive Karaoke Speaker

Quantity:



Inquire Add to Basket

Model:
Karaoke system
Brand:
Sanway

Product Description

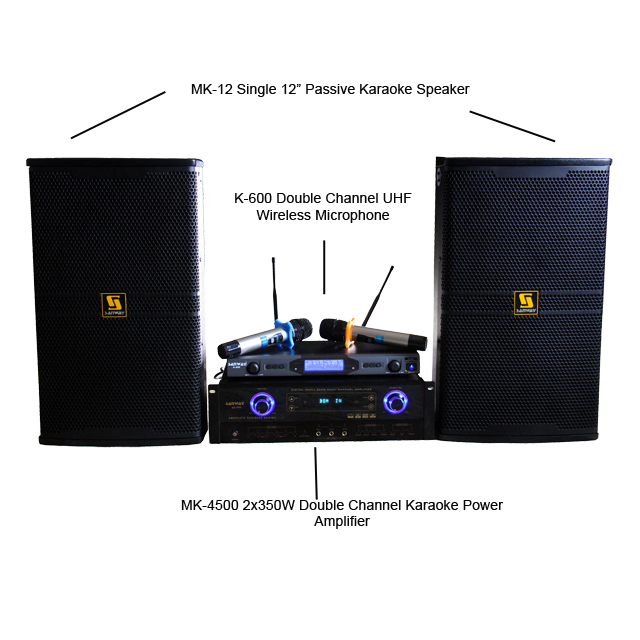

Sanway Karaoke System consists of MK-12 single 12" passive karaoke speaker, MK-4500 2 x 350W 2 channel karaoke power amplifier. and K-600 2 channel UHF wireless microphone.
pa system

MK-12 Single 12” Passive Karaoke Speaker

Frequncy Response (-10 dB):	71 Hz - 20 KHz
Frequncy Response (±3 dB):	90 Hz - 20 KHz
Sensitivity (1w/1m):	97 dB; Peak: 130 dB
Rated Impedance:	8 Ohms
Rated Power:	350 W; Peak: 700 W
Radiated Angle:	70° x 60° (H x V)
Dimension (H x W x D):	600 mm x 350 mm x 382 mm
Net Weight:	14.7 Kg
LF Driver:	one 12” woofer
HF Driver:	one 1.4” Tweeter
Connectors:	2 Neutrik® Speakon® NL4MP
Cabinet Box:	15mm MDF

MK-4500 2x350W Double Channel Karaoke Power Amplifier

Characteristics Details

1>. dual fan, temperature control switches, two-stage wind speed.
2>. duct fins: rapid cooling to reduce the overall machine one temperature, increasing the power of the long-term stability.
3>. strong institutions, integrally molded foam packaging: fully address the possibility of damage caused by rough transport.
4>. gold-plated signal socket: Reduce noise signals caused by poor contact.
5>.1.5 square crude direct connect the power cord: Make sure the power amplifier will not be too thin wire, current or insufficient supply
6>. music BBE dynamic compensation circuit: solve the problem of poor quality computer VOD, VOD and access control to open and close.
7>. the board still left double / single-turn adjustment knob reverb, change orders for customers interested in / Twin Reverb effect
8>. the center speaker volume / treble / bass adjustment knob at the rear panel, and you can choose whether the microphone with reverb and the proportion of music in the home.
9>. export professional Toroidal transformer, built-in 105 ° impact sound protection automatic disconnection device, and is completely without power on / off time.
10>. HI-FI grade capacitors and special agents available genuine amplification sealed tube, to maintain HI-FI-class sound quality.

Input Sensitivity / Impedance
KARAOKE:	200mv / 22
DVD:	300mv / 22
BGM:	300mv / 22
MIC:	17mv / 3.3
Output Power
MUSIC EFFECTOR OUT:	190mv
SUB WOOFER (150Hz):	2.5V
PRE-OUT:	3.6V
VIDEO OUT:	1Vp / P75
Microphone Tone Adjustment
BASS:	±10dB (100Hz)
MID:	±10dB (2Hz)
TREBLE:	+ 10dB (10KHz)
Power Supply:	220VAC 50Hz
Power Output:	2x350W@8ohms
Dimensions:	435x135 x400mm (WHD)
Net Weight:	12.5Kg

K-600 Double Handhold UHF Karaoke Wireless Micophone

Frequency Range:	UHF 500MHz ~ 900MHz (optional)
Modulation:	FM (PLL)
Deviation:	± 25kHz / ± 48kHz
Frequency stability:	± 15ppm
SNR:	110dB (A)
T.H.D	0.1%
Operating temperature:	-10 ° C ~ +55 ° C
Receiver
Receiving Forms:	true diversity reception
Sensitivity (peak deviation):	3uV (52dB S / N)
Audio output level:	Balanced Output: + 10dB (XLR); Unbalanced outputs: + 4dB (1/4 ", 6.3mm jack socket)
Adjacent channel interference ratio:	80dB
Transmitter
RF transmit power (50):	8mW ~ 30mW
Harmonic Suppression:	> 50dB

Karaoke system KTV system UHF Wireless Microphone Double Channel Karaoke Power Amplifier Single 12” Passive Karaoke Speaker
