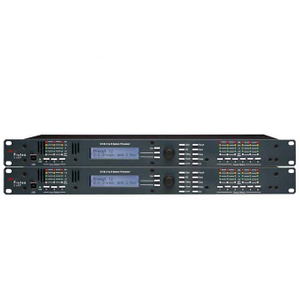

DP26 2 In 6 Out Sound Speaker Management Processor

1) Build in USB & RS 485 COM
2) Program Function; Recall Function; Copy Function; Save Function; Password Function.
3) 6-band EQ: Frequency, gain & Q fact are adjustable;
Gain can be adjusted from -20 dB to +20 dB.
4) 96k Hz sampling frequency, 24-bit A/D and D/A converter, 32-bit DSP digital sound processor
Availability:
Quantity:
  • DP26

  • Sanway

Quick details


Input Impedance

 Balance: 20KΩ

Output Impedance

 Balance: 100Ω

PC Com Port

 One USB Com Port on front panel, 2 Rs485 Com Port on back panel(RJ-45)

CMRR

>70dB@1KHz

Input Level

 ≤+25dBu

Frequency Response

20Hz~20KHz ±0.5dB

S/N R

 >110dB

THD

<0.01% @OUTPUT=0dBu/1KHz

Crosstalk of Channels

 >80dB@1KHz


Key Feature


1) Build in USB & RS 485 COM
2) Program Function; Recall Function; Copy Function; Save Function; Password Function.
3) 6-band EQ: Frequency, gain & Q fact are adjustable;
Gain can be adjusted from -20 dB to +20 dB.
4) 96k Hz sampling frequency, 24-bit A/D and D/A converter, 32-bit DSP digital sound processor
5) Input channel: With 6-band parameter EQ, Delay, polarity
6) Output channel: With 6-band parameter EQ, Gain, Delay, Polarity, Crossover, Limiter/Compressor, Signal select.


Specification


Item DP26

Delay Time Step

 Each input channel has independent delay control, Range:0~1000mS;

 21μS step@0~10mS; 84 μS step@ 10mS~20ms;

0.5mS step@ 20mS~1000mS

Input/Output Polarity

 In-phase(+) or reversed phase(-)

Input EQ

 6-band parameter EQ; Frequency: 20Hz~20KHz; Gain:-20 dB~+20 dB;

Bandwidth: 0.05oct~3oct

Mute

Mute with each Input& Output channel

Input Selection

 Each input channel can be selected to each output channel

Output Gain

 Range:-12dB~+12dB, step: 0.1dB

Crossover

Each output channel can be independently set as LPF and HPF. The parameters

can be adjusted. Filter type :Linkwitz-Riley; Bessel; Butterworth. The Crossover

Frequency: 20Hz~20KHz, Slope: 12dB/oct; 18dB/oct; 24dB/oct;48dB/oct.

Limiter

 Limiter with each output channel. The parameters are adjustable:

Threshold value: -20dBu~+20dBu; step:0.5dBu.

Attack time

 0.3mS~100mS. 0.1mS step@0.3~1mS; 1mS step @1mS~100mS.

 Release Time: Release Time can be set as twice, 4times, 6times, 8times, 16times,

 32times.

Output EQ

 Each output channel has 6-band EQ: 3 modes: Lo-Shelf/Hi-Shelf/Parameter.

 A: Lo-Shelf:

 Slop: 6dB/12dB; Frequency:

20Hz~20kHz; Gain: -20dB~20dB;

 B: Hi-Shelf:

 Slop: 6dB/12dB; Frequency: 20Hz~20kHz; Gain:-20dB~20dB;

C: Parameters:

frequency: 20Hz~20KHz, bandwidth: 0.05oct~3oct; Step: 0.05oct;

Gain: -20dB~+20dB,

Step 0.1dB

Processor

96KHz Sampling frequency, 32-bit Floating-Point DSP

Display

With 2*24 LCD, 8-LED input/output level. Mute and Editing mode can be displayed.

 Power

 ≤25W

Power Supply

 AC 110V/220V 50Hz/60Hz

Dimension(L×W×H)

 482×232×44mm

Gross Weight

5.0kg

dp26 package
