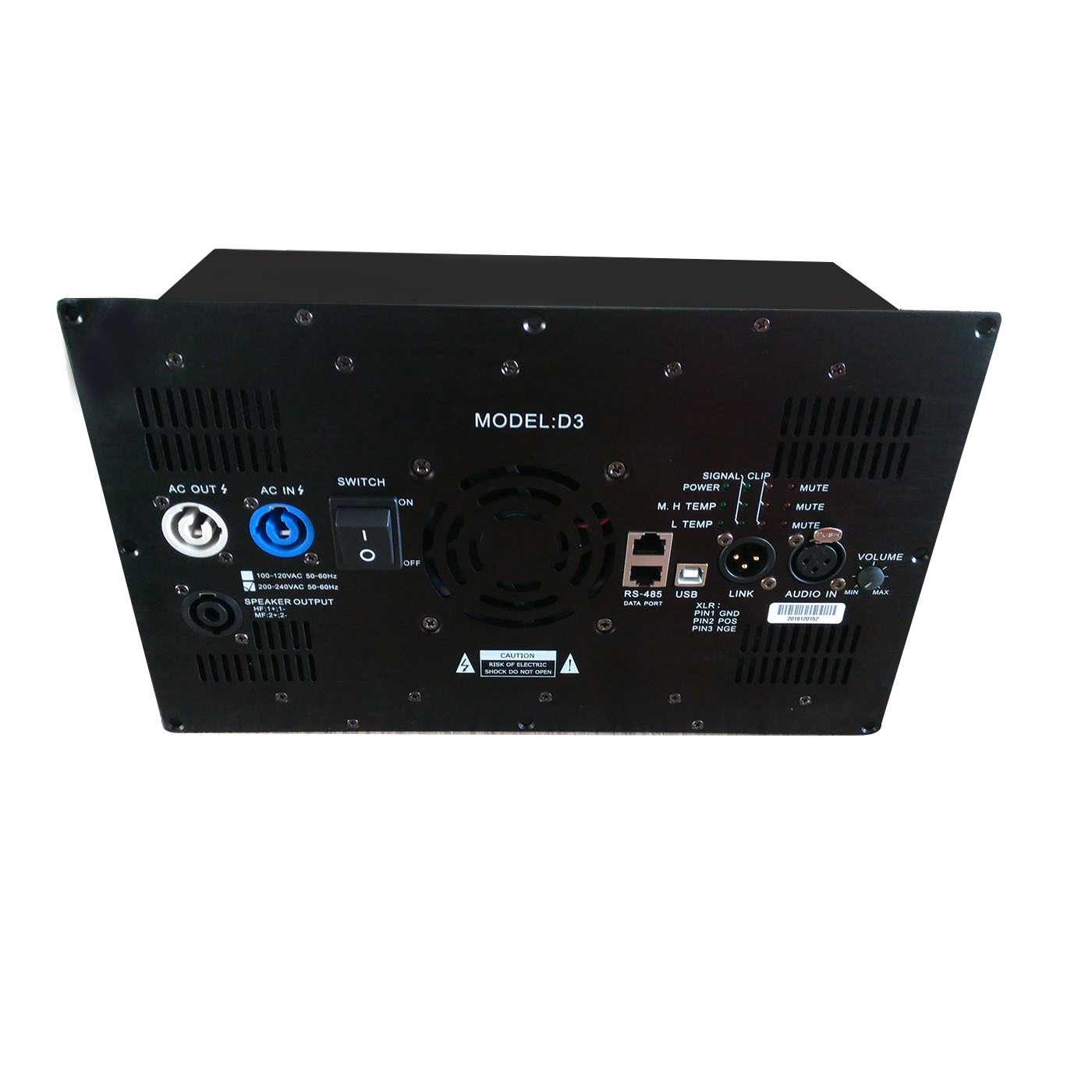

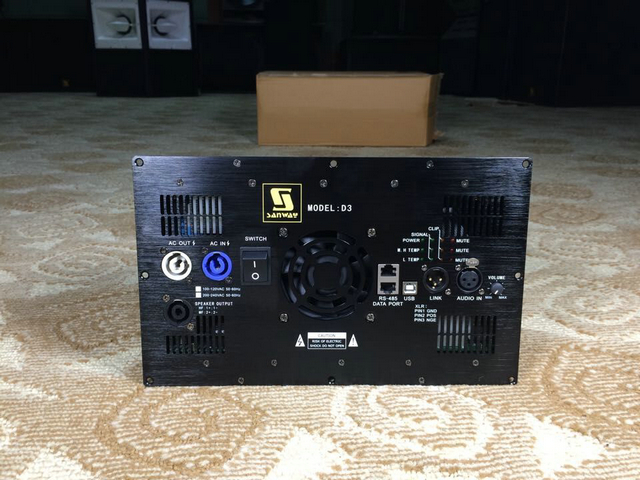

D3 1800W+900W+900W Class D 3CH DSP Amplifier Module for Active Speaker

1. consists of class D amplifier board, switching power supply and DSP module
2. It is 1800W+900W+900W at 4 ohms 3 channels module
3. compact installation dimension with powerful output
Availability:
Quantity:
  • D3

  • Sanway

  • Dual 8 inch Line Array



Key Feature

1>. D3 powered speaker module consists of class D amplifier board; switching power supply and DSP module.
2>. It is 1800W+900W+900W at 4 ohms 3 channels module
3>. This module is mounted an agile DSP module for versatile PA Systems Performance, you could manage this PA system via PC which connected with a USB or RS-485 cable.
4>. Compact installation dimension with powerful output
5>. D3 is perfect for three way line array speaker or one touring sound reinforcement system consists of one subwoofer and two bi-amped top speaker.



Specification


ITEM D3
 8Ω  Power L:1500W + M:500W + H:500W
 4Ω  Power L:1800W + M:900W + H:900W
Frequency Response 20Hz-20KHz ±1dB
THD+N 1KHz 1W 8Ω <0.1%
Signal to Noise Ratio  1KHz >100dB
Channel Separation  1KHz >80dB
Class D
Protection Short,DCP,OVP,UVP,OCP,OTP
Operating Voltage 110V Version:90V-135V / 220V Version 180V-265V
Input Sensitivity 1V
Input Impedance 20KΩ
DSP Fuction MUTE,Polarity,Gain,Delay,
Limiter,Mixer,EQ,XOver
DSP Control USB and RS-485
Dimensions(W×H×D) 312×190×120mm
Packing Dimension 350×210×150mm
Net Weight(kg) 4.9
Gross Weight(kg) 5.9


FAQ:

Q: Is the power cables included with this line of products?

A: Each of our plate amplifier works with an power supply cable and internet cable which are provided.


Q: Can I use this for  2 top speakers ( 350W for each) and a subwoofer (1500W ohms)

A:The D3 plate amplifier have 3 channel (1500W+500W+500W at 8ohms), You could mount the D3 in the subwoofer, one 1500W channel power the sub, and other 500W channel to power the 2 units top speakers.


Q: Where Can I download the DSP software?

A: Please download the DSP software "D series plate module DSP software


 D3 TNSTALLATION

QQ截图20160111163421

QQ截图20160111163456


DSP software


D3 software
